What is Vena Contracta width?

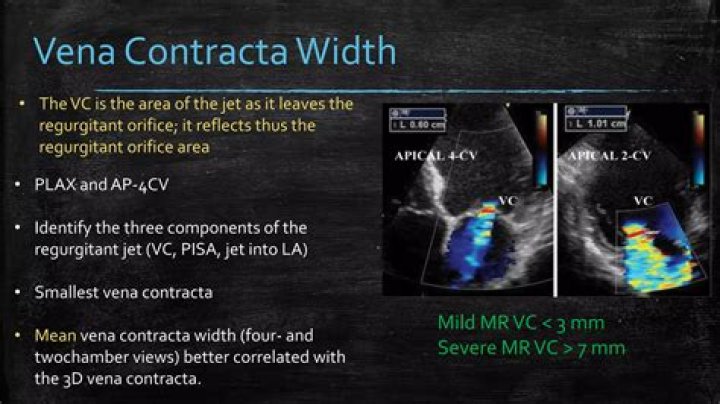

Vena contracta: The vena contracta corresponds to the region in which blood passes through the valve. Velocity is highest here. The width of the vena contracta is a good marker of the severity of mitral regurgitation because it corresponds to the diameter of the regurgitant orifice area.

Keeping this in consideration, what is Vena Contracta?

Vena contracta is the point in a fluid stream where the diameter of the stream is the least, and fluid velocity is at its maximum, such as in the case of a stream issuing out of a nozzle (orifice). (Evangelista Torricelli, 1643). It is a place where the cross section area is minimum.

Also, how Vena Contracta is formed? It's because the flow approaching the hole has an inward radial component of velocity. That inward momentum carries the flow inward as it make the turn to go through the hole along the axis.

Subsequently, one may also ask, what is Vena Contracta in Echo?

Vena contracta is defined as the narrowest central flow region of a jet that occurs at, or just downstream to, the orifice of a regurgitant valve. It is characterized by high velocity, laminar flow. It is slightly smaller than the anatomic regurgitant orifice due to boundary effects.

How is mitral regurgitation calculated?

EROA is calculated as RgV (11 mL)/MR VTI (166 mL)=0.07 cm². AVA indicates aortic valve area; MVA, mitral valve area; and PG, pressure gradient. Several studies have shown the validity and clinical utility of quantitative Doppler measurements of MR severity.

Related Question Answers

Why restriction orifice is used?

Restriction orifice is used for killing pressure in a pipe by increasing fluid velocity. This effect is known as choked flow across the orifice. As the name suggests, function of a restriction orifice is to restrict the flow and kill pressure downstream of the orifice.

What is difference between Orificemeter and Venturimeter?

A venturi meter can be used to measure the flow rates of all incompressible fluids (gases with low pressure variations, as wells as liquids), whereas an orifice meter is generally used for measuring the flow rate of liquid. The flow continues through the pipe line.

Can coefficient of discharge be greater than 1?

Plug in a coefficient for energy losses through turbulence and you have your formula. But you can see indeed that your coefficient can never be greater than one, because that would mean that you end up with more energy than you started with.

What is small orifice?

Small orifice is the one in which has the head of fluid from the centre of orifice is more than five times the depth of orifice. Also the large orifice is the one which has the head is less than five times the depth of orifice.

What is meant by Venturi meter?

Venturi meters are flow measurement instruments which use a converging section of pipe to give an increase in the flow velocity and a corresponding pressure drop from which the flowrate can be deduced. They have been in common use for many years, especially in the water supply industry.

What is Vena Contracta in control valve?

Velocity Profile through Control Valves -As a liquid travels through a control valve, a 'vena contracta' (point of narrowest flow restriction) develops directly downstream of the throttling point. The flow area at this point is smaller than the rest of the flow path.

Why is coefficient of discharge important?

The discharge coefficient is a dimensionless number used to characterise the flow and pressure loss behaviour of nozzles and orifices in fluid systems. Orifices and nozzles are typically used to deliberately reduce pressure, restrict flow or to measure flow rate.

What is meant by coefficient of discharge?

The discharge coefficient (also known as coefficient of discharge) is the ratio of the actual discharge to the theoretical discharge, i.e., the ratio of the mass flow rate at the discharge end of the nozzle to that of an ideal nozzle which expands an identical working fluid from the same initial conditions to the same

How do you measure regurgitant volume?

Regurgitant Volume RV is calculated by subtracting the inflow volume across the mitral valve during diastole from the LVOT stroke volume during systole.

What is EROA?

EROA. Effective Regurgitant Orifice Area. EROA. Economic Rehabilitation in Occupied Areas.

What is regurgitant fraction?

Regurgitant fraction is the percentage of blood that regurgitates back through the aortic valve to the left ventricle due to aortic insufficiency, or through the mitral valve to the atrium due to mitral insufficiency. In patients with severe valvular lesions, regurgitant fraction can approach 80%.

What is systolic blunting?

Blunted systolic flow is. a systolic/diastolic flow ratio between 0 and 1, and normal. pulmonary systolic flow is a systolic/diastolic Wow ratio 2 1.

How do you do Pisa?

There are two steps to performing the PISA method.

1. Step 1: Measuring the Radius (r) Zoom MV. Color Doppler. Shift Color Baseline DOWN (TTE) to 20-40 cm/sec. Freeze to obtain mid-systolic frame.
2. Step 2: CW Doppler MR Jet Velocity & Measure. Zoom MV/LA. Color Doppler. CW Doppler MR. VTI MR Velocity.

What is major loss in pipe flow?

Major Head Loss - head loss or pressure loss - due to friction in pipes and ducts. Minor Head Loss - head loss or pressure loss - due to components as valves, bends, tees and the like in the pipe or duct system.

What is the aliasing velocity for Pisa?

For acquisition of 2D colour Doppler maps of the PISA shells, the aliasing velocity was set at 31.9 cm/s, the depth and zoom were adjusted for optimal measurement precision and to optimize the frame rate.

What is coefficient of velocity?

Definition of coefficient of velocity. : the ratio of the actual velocity to the theoretical velocity of a fluid jet.

What is flow convergence?

Flow convergence zone: The flow convergence zone is the zone of increased flow velocity before the regurgitant orifice, just as the flow of water in a river increases prior to a rapid.

What is orifice and mouthpiece?

An orifice is an opening made in the side or bottom of tank, having a closed perimeter, through which the fluid may be discharged. A mouthpiece is short tube fitted to a same size circular opening provided in a tank so that fluid may be discharged through it.

What Reynolds number is turbulent?

It is also found that a flow in a pipe is laminar if the Reynolds Number (based on diameter of the pipe) is less than 2100 and is turbulent if it is greater than 4000.

What is hydraulic coefficient?

Hydraulic Coefficients include Coefficient of contraction, Coefficient of velocity, Coefficient of discharge and Coefficient of resistance. The following are the hydraulic coefficients: 1. Coefficient of contraction (Cc). It is defined as the ratio of area of jet at *vena contracta (ac) to the area of orifice (a).

How do you calculate coefficient of discharge orifice?

Symbols and units for discharge coefficient equations: A_o=orifice area (m²), A_p=pipe area (m²), d=orifice diameter (m), D=pipe inside diameter (m), P₁-P₂=differential pressure (N/m²), P₁-P₃=non-recoverable pressure difference (N/m²), Q=flow rate (m³/s), V_o=velocity through orifice (m/s), V_p=velocity in pipe (m/s), ρ=

How do you find the coefficient of contraction?

For a sharp-edged, or "ideal" circular orifice, A/A_o = C_c = π/(π + 2) = 0.611. C_c is called the coefficient of contraction. For a sharp orifice, is usually estimated to be 0.62, a figure that can be used if the exact value is not known.

What is effective regurgitant orifice area?

Effective regurgitant orifice area is an important and clinically significant index of regurgitation severity. It brings additive information to other quantitative indexes and its measurement should be implemented in the comprehensive assessment of valvular regurgitation.

How is aortic regurgitation measured?

CW-Doppler can be used to measure regurgitant flow velocity of the AR jet, which reflects the diastolic pressure gradient between the aorta and the LV. The rate of deceleration and the derived pressure half-time correspond to the rate of equalisation of these pressures.

What is eccentric mitral regurgitation?

Mitral valve regurgitation — also called mitral regurgitation, mitral insufficiency or mitral incompetence — is a condition in which your heart's mitral valve doesn't close tightly, allowing blood to flow backward in your heart.

What is Pisa in echocardiography?

The proximal isovelocity surface area (PISA) of a regurgitant color flow jet can be useful in the estimation of valvular insufficiency. PISA is based on the hemodynamic principles of flow through a small circular orifice in a flat plate. Color flow Doppler can be used to calculate the area of the hemisphere.

What is Coanda effect in echocardiography?

The Coanda Effect is the adherence of a fluid jet to a nearby curved surface resulting in a change in the fluid path [4] . The Fluid Mechanics of Mitral Regurgitation in the Human Heart: Towards a Better Understanding of Echocardiograms.
