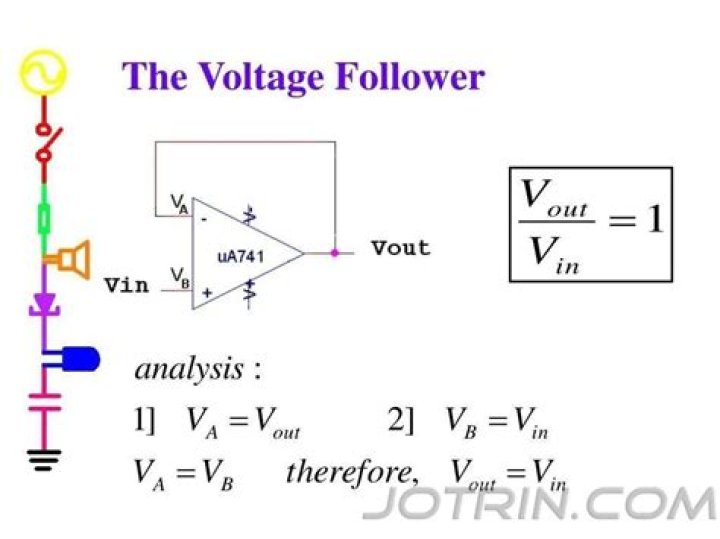

A voltage follower is also known as a unity gain amplifier, a voltage buffer, or an isolation amplifier. In a voltage follower circuit, the output voltage is equal to the input voltage; thus, it has a gain of one (unity) and does not amplify the incoming signal. Also to know is, what is the voltage gain of the unity follower?
A voltage follower (also called a unity-gain amplifier, a buffer amplifier, and an isolation amplifier) is a op-amp circuit which has a voltage gain of 1. This means that the op amp does not provide any amplification to the signal.
Likewise, what do you mean by voltage follower? Voltage follower is an Op-amp circuit whose output voltage straight away follows the input voltage. That is output voltage is equivalent to the input voltage. Op-amp circuit does not provide any amplification. This high input impedance of voltage follower is the reason of it being used in several circuits.
Moreover, what is the point of a voltage follower?
The voltage follower is the safest and easiest transistor amplifier circuit to build. Its purpose is to provide approximately the same voltage to a load as what is input to the amplifier but at a much greater current. In other words, it has no voltage gain, but it does have current gain.
What does a voltage buffer do?
A voltage buffer amplifier is used to transfer a voltage from a first circuit, having a high output impedance level, to a second circuit with a low input impedance level. The interposed buffer amplifier prevents the second circuit from loading the first circuit unacceptably and interfering with its desired operation.
Related Question Answers
How much gain does a buffer voltage follower provide?
How much gain does a buffer (voltage follower) provide? A buffer always results in a gain of 1. 4. What is the voltage gain?
voltage gain. [′vōl·tij ‚gān] (electronics) The difference between the output signal voltage level in decibels and the input signal voltage level in decibels; this value is equal to 20 times the common logarithm of the ratio of the output voltage to the input voltage. What is the loading effect?
Answer: Loading effect is the degree to which a measurement instrument impacts electrical properties (voltage, current, resistance) of a circuit. Explanation. Loading effect of voltmeters. A voltmeter always connects in parallel to electronic components for measuring the voltage. What is inverting and non inverting terminal?
Inverting focuses on the applied input to get inverted because the feedback is provided in between the output to the input inverting terminal. Non-inverting terminal is grounded in case of the inverting amplifiers. Inverting terminals are grounded in case of non-inverting amplifiers. Which is better inverting or noninverting amplifier?
Inverting op-amps provide more stability to the system than non-inverting op-amp.In case of inverting op-amp negative feedback is used that is always desirable for a stable system. Why does the buffer circuit is known as Unity follower?
A basic analog buffer circuit typically has a high impedance input so as to not load down the input signal. They may be inverting or non-inverting. They're known as a unity follower because their gain is usually 1:1 (unity) and the output follows the input. What is the difference between inverting and non inverting input?
The amplifier which has 180 degrees out of phase output with respect to input is known as an inverted amplifier, whereas the amplifier which has the o/p in phase with respect to i/p is known as a non-inverting amplifier. What is voltage buffer amplifier?
A voltage buffer amplifier is used to transfer a voltage from a first circuit, having a high output impedance level, to a second circuit with a low input impedance level. The interposed buffer amplifier prevents the second circuit from loading the first circuit unacceptably and interfering with its desired operation. What is the difference between common mode and differential mode input signals?
What is the difference between common mode and differential mode? A. The common mode refers to signals or noise that flow in the same direction in a pair of lines. The differential (normal) mode refers to signals or noise that flow in opposite directions in a pair of lines. How can I increase my CMRR value?
- Constant Mode Rejection Ratio (CMRR)of a differential amplifieris the rejection by the device of unwanted input signals common to both inputs.
- CMRR is the ratio of differential gain to the common mode gain.
- Methods to improve CMRR in Differential Amplifier: I. Use of constant current bias. i.
When a differential amplifier is operated single ended?
Single-ended Operation when a differential amplifier is operated in this mode, one input is ground and the signal voltage is applied only to the other input. In Figure (a) input signal is applied to terminal 1 and terminal 2 is ground. How does an inverting op amp work?
An op-amp has two differential input pins and an output pin along with power pins. Those two differential input pins are inverting pin or Negative and Non-inverting pin or Positive. An op-amp amplifies the difference in voltage between this two input pins and provides the amplified output across its Vout or output pin. What is unity follower circuit?
A voltage follower is also known as a unity gain amplifier, a voltage buffer, or an isolation amplifier. In a voltage follower circuit, the output voltage is equal to the input voltage; thus, it has a gain of one (unity) and does not amplify the incoming signal. How do op amp buffers work?
A voltage buffer amplifier is used to transfer a voltage from a first circuit, having a high output impedance level, to a second circuit with a low input impedance level. The interposed buffer amplifier prevents the second circuit from loading the first circuit unacceptably and interfering with its desired operation. What is a unity gain amplifier?
A unity gain buffer (also called a unity-gain amplifier) is a op-amp circuit which has a voltage gain of 1. The reason it is called a unity gain buffer (or amplifier) is because it provides a gain of 1, meaning there is no gain; the output voltage signal is the same as the input voltage. What is loading effect in op amp?
Loading effect can be defined as the effect on the source by the load impedance. Usually loading effect reduces the voltage level of a voltage source. Amplifier input impedance are calculate taking both the bias resistances (R1, R2) and the transistor input (i.e. base input resistance), βr'e. What is the feedback factor of voltage follower circuit?
As there is no external components in the feedback circuit and the gain is Unity (1), this voltage follower is also known as Unity Gain Buffer. The input impedance of the op-amp is very high when a voltage follower or unity gain configuration is used. Sometimes the input impedance is much higher than 1 Megohm. What is the use of unity gain amplifier?
Op amps are often used as unity gain amplifiers to isolate stages of a circuit from one another. Unity gain amplifiers come in two types: voltage followers and voltage inverters. A follower is a circuit in which the output is exactly the same voltage as the input. What is meant by virtual ground?
From Wikipedia, the free encyclopedia. In electronics, a virtual ground (or virtual earth) is a node of a circuit that is maintained at a steady reference potential, without being connected directly to the reference potential. Do op amps work with AC?
But in most electronic circuits the voltage is in the order of milli Volts so transistor can be used to amplify ac signals also, but small signal. That is the fundamental and if you want to know how an op-amp amplifies both ac and dc signal, first you've to learn how a transistor amplifies ac and dc signal. What is a comparator circuit?
A comparator circuit compares two voltages and outputs either a 1 (the voltage at the plus side; VDD in the illustration) or a 0 (the voltage at the negative side) to indicate which is larger. Comparators are often used, for example, to check whether an input has reached some predetermined value. What is current buffer?
Current buffer is a circuit that is used to transfer current from a low input impedance circuit to a circuit having high input impedance. The current buffer circuit connected in between the two circuits prevents the second circuit from loading the first circuit. How does a Schmitt trigger work?
A Schmitt trigger is a logic input circuit that uses hysteresis to apply positive feedback to the noninverting input of a comparator or differential amplifier. This allows the output to retain its value until the input changes sufficiently to trigger a change. How do you find voltage gain?
Voltage gain is defined as the ratio of the output voltage to the input voltage in dB. Assume that the input voltage is 10 mV (+10 dBm) and the output voltage is 1 V (1000 mV, +60 dBu). The ratio will be 1000/10 = 100, and the voltage gain will be 20×log 100 = 40 dB. Why op amp has high gain?
Thus, as it's high impedance, it acts as a small load. The high impedance ensures that it draws very little current. Thus, an op amp is a low-current, high-voltage gain device. Note: If op amps were low input impedance devices, large current would flow from the power source to the op amp. What is the maximum gain of op amp?
The maximum gain is the open loop gain. It depends on the opamp model, and can go anywhere from 60 dB to 120 dB voltage gain. The open-loop bandwidth is however very small. Another issue is that this gain is very variable between different parts of the same product number due to variations. What is gain for?
Gain (electronics) In electronics, gain is a measure of the ability of a two-port circuit (often an amplifier) to increase the power or amplitude of a signal from the input to the output port by adding energy converted from some power supply to the signal. What is a gain resistor?
The gain of an op amp signifies how much greater in magnitude the output voltage will be than the input. For example, an op amp with a resistor, RIN, of 20KΩ and a resistor, RF of 100KΩ, will have a gain of 6. This means that the output will be 6 times greater in magnitude than the input voltage. How does 741 op amp work?
The most common Op-Amp is the 741 and it is used in many circuits. The OP AMP is a 'Linear Amplifier' with an amazing variety of uses. Its main purpose is to amplify (increase) a weak signal - a little like a Darlington Pair. The OP-AMP has two inputs, INVERTING ( - ) and NON-INVERTING (+), and one output at pin 6. Why feedback is used in op amp?
Notice that in both the voltage follower and this non-inverting amplifier the actual amplification factor of the opamp cancels provided it is high enough (>> 1). The ideal op-amp has infinite gain, and this is of little use in analog electronics. The feedback is used to limit the gain of the circuit.
