What is relationship in UML?

Relationships in UML are used to represent a connection between structural, behavioral, or grouping things. It is also called a link that describes how two or more things can relate to each other during the execution of a system. Type of UML Relationship are Association, Dependency , Generalization , and Realization.

Furthermore, what is has a relationship in UML?

In database design, object-oriented programming and design (see object oriented program architecture), has-a (has_a or has a) is a composition relationship where one object (often called the constituted object, or part/constituent/member object) "belongs to" (is part or member of) another object (called the composite

Furthermore, what is the relationship between employee and department in UML? Each department has a manager who is recruited from the set of employees of that department. An employee is associated with one or more departments but it has one 'home' department. Your task is to model the system for the company.

Herein, does UML class diagram have relationships?

Relationships in Class Diagrams Classes are interrelated to each other in specific ways. In particular, relationships in class diagrams include different types of logical connections. The following are such types of logical connections that are possible in UML: Association.

Has a relationship VS is a relationship?

Wherever you see an extends keyword or implements keyword in a class declaration, then this class is said to have IS-A relationship. HAS-A Relationship: Composition(HAS-A) simply mean the use of instance variables that are references to other objects. For example Maruti has Engine, or House has Bathroom.

Related Question Answers

How does UML Show inheritance?

To show inheritance in a UML diagram, a solid line from the child class to the parent class is drawn using an unfilled arrowhead.

How do you show aggregation in UML?

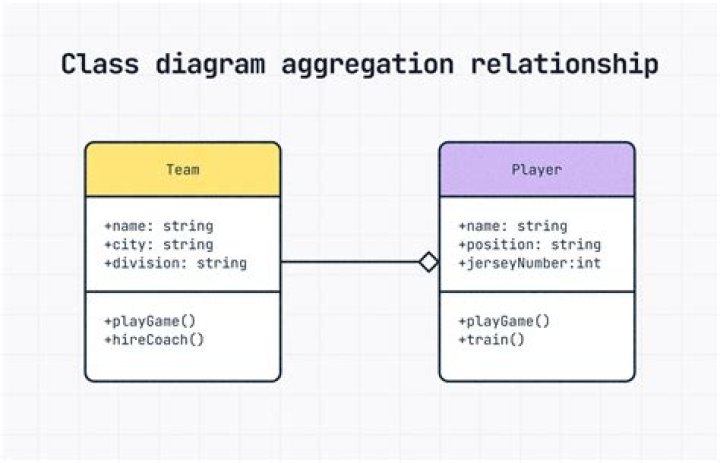

Aggregation relationship is denoted using a straight line with an empty arrowhead at one end. Composition relationship is denoted using a straight line with a filled arrowhead at any one of the ends. Association can exist between two or more classes in UML.

Is a relationship OOP?

One of the advantages of Object-Oriented programming language is code reuse. Object oriented programming generally support 4 types of relationships that are: inheritance , association, composition and aggregation. All these relationship is based on "is a" relationship, "has-a" relationship and "part-of" relationship.

What are UML diagrams?

A UML diagram is a diagram based on the UML (Unified Modeling Language) with the purpose of visually representing a system along with its main actors, roles, actions, artifacts or classes, in order to better understand, alter, maintain, or document information about the system.

What is UML modeling with examples?

Mainly, UML has been used as a general-purpose modeling language in the field of software engineering. However, it has now found its way into the documentation of several business processes or workflows. For example, activity diagrams, a type of UML diagram, can be used as a replacement for flowcharts.

Is a relationship full form?

The abbreviation SO refers to a significant other, which could mean a spouse, life partner, or someone in a long-term, committed relationship. Another term used is SSO for "secondary significant other," used in partnerships where there are primary and secondary relationships.

Is a has a relationship C++?

“has A” relationships are not just in C++ and are the same in every language. The premise is that there are 2(or more) classes. Class A contains fields/members of Classes B, C, etc…. That's a “has A” relationship.

What are the 4 types of relationships?

This section focuses on four types of relationships: Family relationships, Friendships, Acquaintanceships and Romantic relationships.

What are the 9 UML diagrams?

List of UML Diagram Types

Structure Diagrams. Class Diagram. Component Diagram. Deployment Diagram. Object Diagram. Package Diagram. Profile Diagram. Composite Structure Diagram.
Behavioral Diagrams. Use Case Diagram. Activity Diagram. State Machine Diagram. Sequence Diagram. Communication Diagram. Interaction Overview Diagram.

What does UML stand for?

Unified Modeling Language

What is aggregation UML?

In UML models, an aggregation relationship shows a classifier as a part of or subordinate to another classifier. An aggregation is a special type of association in which objects are assembled or configured together to create a more complex object. Aggregations are closely related to compositions.

How do I make a UML diagram?

Class Diagram. Class diagrams are the backbone of almost every object-oriented method, including UML.
Package Diagram.
Object Diagram.
Composite Structure Diagram.
Use Case Diagram.
Activity Diagram.
Sequence Diagram.
Interaction Overview Diagram.

What is class in UML?

In software engineering, a class diagram in the Unified Modeling Language (UML) is a type of static structure diagram that describes the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among objects.

Is a type of relationship between classes is?

When a class is formed as a collection of other classes, it is called an aggregation relationship between these classes. It is also called a “has a” relationship.

What is Generalisation in UML?

Generalization in UML. A generalization is a binary taxonomic (i.e. related to classification) directed relationship between a more general classifier (superclass) and a more specific classifier (subclass). Because of this, generalization relationship is also informally called "Is A" relationship.

What is a visibility symbol in UML?

The visibility of the attributes and operations can be represented in the following ways − Public − A public member is visible from anywhere in the system. In class diagram, it is prefixed by the symbol '+'. Private − A private member is visible only from within the class.

Does Java have UML relationship?

Has-A Relationship in Java. In Java, a Has-A relationship is also known as composition. It is also used for code reusability in Java. In Java, a Has-A relationship simply means that an instance of one class has a reference to an instance of another class or an other instance of the same class.

What is the difference between association and aggregation?

Association refers to "has a" relationship between two classes which use each other. Aggregation refers to "has a"+ relationship between two classes where one contains the collection of other class objects.

What is inheritance in UML?

In OOAD inheritance is usually defined as a mechanism by which more specific classes (called subclasses or derived classes) incorporate structure and behavior of more general classes (called superclasses or base classes). Inheritance was explained in UML 1.4.
