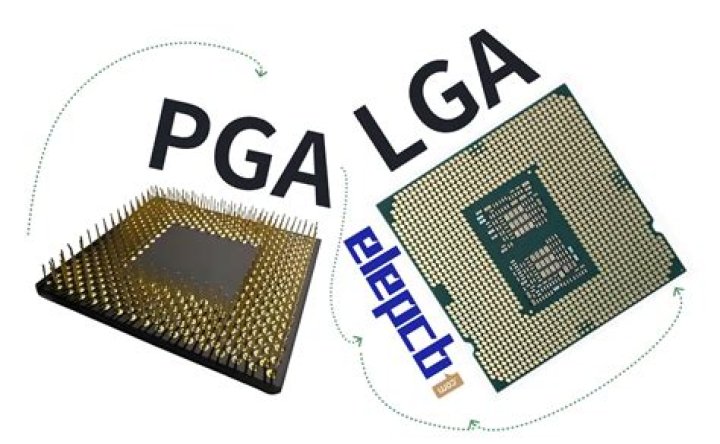

What is PGA LGA BGA?

Generally, in consumer grades, three types of sockets are mostly available. These are; LGA that stands for Land Grid Array, PGA which stands for Pin Grid Array and lastly, BGA stands for Ball Grid Array.

Correspondingly, what is the difference between BGA and LGA?

LGA packaging is related to ball grid array (BGA) and pin grid array (PGA) packaging. Unlike pin grid arrays, land grid array packages are designed to fit either in a socket, or be soldered down using surface mount technology. BGA packages, however have balls as their contacts in between the IC and the PCBs.

Likewise, does Intel use LGA or PGA? "Land grid array" (LGA) consists of a socket with pins that you place the processor on. PGA ("pin grid array"), on the other hand, places the pins on the processor, which you then insert into a socket with appropriately placed holes. In the modern computing era, Intel CPUs use LGA sockets, while AMD CPUs use PGA.

Also know, what is BGA CPU?

A ball grid array (BGA) is a type of surface-mount packaging (a chip carrier) used for integrated circuits. BGA packages are used to permanently mount devices such as microprocessors. A BGA can provide more interconnection pins than can be put on a dual in-line or flat package.

What is a PGA socket?

Pin Grid Array Sockets (PGA)

A pin grid array (PGA) socket is the integrated circuit packaging standard used in most second- through fifth-generation processors. These sockets are either rectangular or square, with pins arranged in a regular array on the underside of the package.

Related Question Answers

Why does AMD use PGA?

PGA is working fine, and is cheaper on both amd and the motherboard makers, server chips use LGA due to the quad channel memory requiring more pins.

Which is better LGA or PGA?

The motherboard can hardly be damaged by CPU misalignment. (More Durable Motherboard) It is much easier to repair bent pins on a PGA processor than on a LGA motherboard. (Slightly Better Repairability)

What is the full meaning of LGA?

local government area

Which LGA socket is best for gaming?

The Best Intel Gaming Motherboards: Z490, Z390, H370, and X299

1. ASRock Z490 Taichi. Best ATX Z490 Motherboard.
2. Gigabyte Z390 Designare. Best ATX Z390 Motherboard.
3. ASRock Z390 Phantom Gaming ITX. Best Mini-ITX Z390 Motherboard.
4. Gigabyte Z390 Gaming X.
5. ASRock H370M Pro4.
6. Gigabyte X299X Designare 10G.
7. ASRock X299E-ITX/AC.

What is Intel LGA?

Socket LGA 775, unlike earlier Intel processor sockets, uses a land grid array format, so the pins are on the socket, rather than the processor. LGA uses gold pads (called lands) on the bottom of the processor to replace the pins used in PGA packages.

What Intel processor families use lga1150 socket?

Intel Xeon processors for socket LGA 1150 use the Intel C222, C224, and C226 chipsets.

What other AMD processor will often fit in an fm2+ socket?

This includes A6, A8 and A10-Series APUs, that come with 2 or 4 CPU cores and GCN graphics unit. The FM2+ is also compatible with Athlon X4 quad-core microprocessors, that lack integrated graphics unit. The socket supports dual-channel DDR3 memory with data rates up to 2133 MHz.

What are CPU socket types?

There are different types of sockets: pin grid array (PGA), which has even rows of holes around a square socket; staggered pin grid array (SPGA), which has staggered holes so more pins can be inserted; plastic pin grid array (PPGA); micro pin grid array (µPGA); flip chip ball grid array (FCBGA); and land grid array (

What is the most common CPU socket?

Commonly used sockets are:

• Socket 478 - for older Pentium and Celeron processors.
• Socket 754 - for AMD Sempron and some AMD Athlon processors.
• Socket 939 - for newer and faster AMD Athlon processors.
• Socket AM2 - for the newest AMD Athlon processors.
• Socket A - for older AMD Athlon processors.

Does CPU socket type matter?

There are different sockets depending on what generation CPU is supported. If a situation should occur where the CPU and socket aren't compatible, the best case scenario is that the component won't physically be able to connect with the socket, while the worst case may be irreparable damage to either system part.

How many sockets can a CPU have?

Most servers will have one or two sockets that are each designed for a matching set of a particular type/brand of CPU, and each socket will contain only one CPU. Most commercial grade software will license based upon socket count in the machine (e.g. Windows Server, VMware, Veeam, and others like those).

What is BGA soldering?

For BGA soldering, the solder balls on the package have a very carefully controlled amount of solder, and when heated in the soldering process, the solder melts. Surface tension causes the molten solder to hold the package in the correct alignment with the circuit board, while the solder cools and solidifies.

What type of socket is used to hold a CPU in place?

Ball or Pin. CPU sockets come in two major types -- ball-grid array and pin-grid array. PGA sockets look like a checkerboard with lots of squares. They are designed to hold a CPU chip with an array of pins sticking out of its bottom.

Can I upgrade BGA processor?

Yes, if the processor uses a BGA socket, it cannot be upgraded. If the processor were not soldered to the motherboard, it might be able to be upgraded. For such an upgrade, the new processor must be socket, BIOS, and chipset compatible.

How do I know my CPU socket type?

How to Identify Your Intel® Desktop Processor Socket

1. Identify your Intel® Processor.
2. Visit the Product Specification Page (ARK), and enter the processor's number in the search box located in the upper-right corner.
3. In the product page and under Package Specifications, look for Sockets Supported, which lists the socket supported for the processor.

Can I change CPU socket?

Most computer processors are socketed. This means there is a physical connector which is soldered to the motherboard and that socket can have different processors plugged into it. Since the CPU is only plugged into the socket, it can be removed and replaced with a different processor with relative ease.

How do CPU sockets work?

A CPU socket uses a series of pins to connect a CPU's processor to the PC's motherboard. If a CPU is connected via a CPU socket, it is not soldered and can therefore be replaced. CPU sockets are more common with desktop PCs than they are on laptops.

What socket does AMD use?

Socket AM4

What is Hyper Threading?

Hyper-Threading is Intel's term for simultaneous multithreading (SMT). This is a process where a CPU splits each of its physical cores into virtual cores, which are known as threads. Hyper-Threading allows each core to do two things simultaneously.

How do I know what CPU is compatible with my motherboard?

To make sure your motherboard will be compatible, you will need to look at what socket and chipset your processor is compatible with. The socket refers to the physical slot on the motherboard that holds your processor in place.

What PGA means?

Professional Golfers' Association (with or without the apostrophe), the usual term for an organization of professional golfers. Professional Golfers' Association (Great Britain and Ireland) Professional Golfers' Association of America.
