What does the ABS sensor connect to?

This component, which is also referred to as an ABS sensor, is attached to the hub of a drive tire and is responsible for monitoring multiple vehicle functions such as traction control, anti-lock braking systems, and obviously, the vehicle's speed.

Also know, what do ABS sensors do?

The anti-lock braking system uses an ABS sensor or wheel sensor to monitor the wheel speed and send this information to the ABS computer. The ABS computer uses this information to prevent the brakes from locking during an emergency stop.

Secondly, how do I know if my abs sensor is bad? When an ABS sensor fails, there are usually a few warning signs that will warn you that there is a problem.

Symptoms of a Bad or Failing ABS Speed Sensor

1. The ABS Light comes on.
2. Brakes take longer to stop car.
3. Less stability under icy or wet driving conditions.

In this regard, what is inside an ABS sensor?

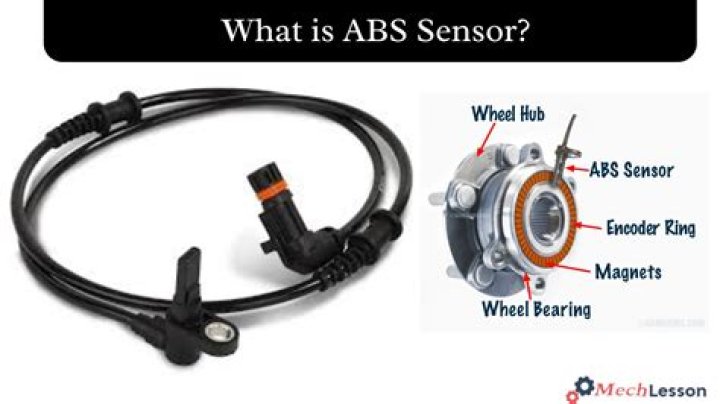

The ABS sensor usually consists of a toothed ring and a magnet enclosed within a coil. The contact between the ring and the magnet induces an electric field due to which a signal is generated. This signal is then transformed into a digital signal and sent to the ABS controller.

Does the ABS affect the transmission?

Yes, ABS does affect the transmission. Namely, the vehicle speed sensor is part of the ABS system. The transmission tuning is also based on road speed, and controls when the truck upshifts, downshifts, and when to lock the torque converter.

Related Question Answers

Can I drive with a bad ABS sensor?

For example, if an ABS sensor has a broken wire, the entire ABS system will be disabled since the initial self-test will not succeed. The ABS light is yellow for a reason – it indicates that caution should be taken while driving the vehicle, but there is no imminent need to stop.

How much does it cost to replace ABS sensors?

ABS wheel sensors cost anywhere from $100 to $200 each, while ABS control modules run from $200 up to $600 apiece. In addition, expect to pay between $80 and $150 per hour for labor and anticipate at least an hour to an hour and a half of work.

How many ABS sensors does a car have?

What You'll Need. First, check with your owner's manual to see where your ABS sensors are located. There will be at least one and up to four.

How long do ABS sensors last?

You can usually expect to get 30,000 to 50,000 miles out of your ABS speed sensor – more if you don't drive often, or if you live in an area where your car is seldom exposed to dirt, road salt, or other compounds that can cause damage to electronics.

Can you drive a car without ABS working?

Yes, you can drive without ABS but be careful. One of the greatest dangers with your wheels locking up, which ABS pretty much solves, is that when the front tires lock up, you lose the ability to steer your vehicle. During emergency stopping, without ABS, your front tires would have the tendency to lock up.

What causes ABS light to come on and stay on?

An ABS warning light that comes on and stays on could signal a problem with various components in and related to the anti-lock brakes. For instance, special sensors monitor the speed of the wheels. If one or more of these wheel speed sensors are inoperative or defective, the ABS warning light will remain on.

Are all ABS sensors the same?

Yes, the ABS Sensor and the Wheel Speed Sensor are both the same part. A wheel speed sensor is the most common failure in the ABS system. The reason your engine management and traction control light are also on is because those systems "borrow" wheel speed information from the ABS system.

What can a faulty ABS sensor cause?

1. ABS Light is illuminated on the dashboard. There are other problems that will also cause this light to illuminate including a faulty ABS pump, worn out brake pads, low brake fluid levels, issues with brake pressure, or air trapped in the brake lines.

Where is the ABS wheel sensor located?

The ABS sensor is part of your vehicle's anti-lock braking system. It's located on the tires and monitors wheel speed. This sensor works with the electronic control module to keep your wheels from locking up when you brake. Ask your service advisor to check the ABS wheel sensor during a routine brake service.

Are ABS brakes active or passive?

Anti-lock braking systems (ABS) are active safety features designed to help drivers retain steering control by preventing wheels from locking up during an episode of heavy braking. Wheel lock means that the wheels of the vehicle have stopped rotating and as a result the vehicle begins to slide.

Does ABS sensor affect speedometer?

Signs of a failing ABS speed sensor

Occasionally, the speedometer may stop working, as well. Loss of stability and traction control: If it detects a bad wheel speed sensor, the ABS computer will usually disable the stability and traction control systems, as well.

How do ABS systems work?

ABS works by releasing and then reapplying or 'pumping' the brakes to a motorcycle wheel or car wheels in heavy braking situations. When a lock-up is detected, ABS pumps the brakes, 100's of times a second. This stops the wheel or wheels from skidding and helps keep the driver in control of the vehicle.

Can a bad ABS sensor cause vibration?

If you have never experienced an ABS activation it is a vibration in the brake pedal while you are pressing it. You may also feel a pulsation in motion of the vehicle and a rumble sound from the brakes. It told me it was the front left ABS sensor was bad.

How does a 2 wire ABS sensor work?

The 2 wire Hall effect ABS sensor is current regulating. The amount of current (I_s) is changed by the sensor when a tooth is passing the sensor. Depending on the sensor design, the presence of a tooth causes either a high or a low current and a gap between teeth the opposite.

How do you check if ABS is working?

When ABS is working properly, the driver may feel the brake pedal suddenly drop, followed by a rapid pulsing sensation. There may be a grinding or buzzing noise coming from the vehicle during the period ABS is activated. It may also feel like the brake pedal is pushing back when ABS activates.

Can bad rotors cause ABS light to come on?

I guess it's possible that severe vibration in the rotors can cause the wheel speed sensors to malfunction and cause the ABS light to illuminate.

What will happen if I remove my abs fuse?

What happens if I remove the ABS fuse? In most conditions, the vehicle's stopping distance will be longer because the front-rear bias of the brakes is optimized for one combination of vehicle loading, deceleration and friction coefficient.

Can a sensor cause transmission problems?

The Vehicle Speed Sensor measures a vehicle's speed. If it malfunctions or fails to work, then the automatic transmission may not operate as it should. This sensor may also cause the automatic transmission to go into failsafe mode – giving the appearance that the issue is more severe than it really is.

What happens if ABS not working?

The ABS system is designed to help prevent wheels from locking during heavy braking situations, preventing the vehicle from skidding or hydroplaning. When the ABS system is not functioning then loss of traction, skidding, and hydroplaning are far more likely to occur under heavy braking conditions.

What does a ABS light indicate?

CARS.COM — ABS stands for antilock braking system, and if the ABS warning light is illuminated in your car's gauge cluster, that means the antilock system has been deactivated because of a malfunction.

Can ABS cause brakes to drag?

The cause of a one wheel drag on a disc brake can be either mechanical or hydraulic in nature. The list of possible causes will include: Check valve brake hose. Restriction in ABS modulator (if equipped)
