What are the main parts of steam turbine?

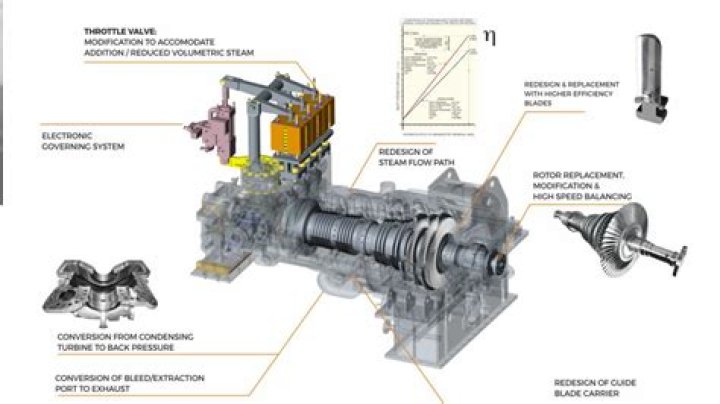

The main parts of a steam turbine are (1) the rotor that carries the blading to convert the thermal energy of the steam into the rotary motion of the shaft, (2) the casing, inside of which the rotor turns, that serves as a pressure vessel for containing the steam (it also accommodates fixed nozzle passages or stator

Beside this, what are the parts of turbine?

The turbine components to be installed are the tower, nacelle, hub and blades.

Secondly, what is the steam turbine made of? The nickel-based blades are alloyed with aluminum and titanium to improve strength and creep resistance. The microstructure of these alloys is composed of different regions of composition.

People also ask, what are the two main types of steam turbines?

Two types of steam turbines must be considered, condensing and noncondensing.

What are the functions of steam turbine?

The steam turbine generator is the primary power conversion component of the power plant. The function of the steam turbine generator is to convert the thermal energy of the steam from the steam generator to electrical energy.

Related Question Answers

What is called Turbine?

A turbine ( or ) (from the Latin turbo, a vortex, related to the Greek τύρβη, tyrbē, meaning "turbulence") is a rotary mechanical device that extracts energy from a fluid flow and converts it into useful work. The work produced by a turbine can be used for generating electrical power when combined with a generator.

What is turbine and types?

There are two main types of hydro turbines: impulse and reaction. The type of hydropower turbine selected for a project is based on the height of standing water—referred to as "head"—and the flow, or volume of water, at the site. Other deciding factors include how deep the turbine must be set, efficiency, and cost.

What is steam turbine and its types?

? Multistage Impulse and Reaction turbines: They are made in a wide range of power capacities varying from small to large. According to the type of steam flow: ? Axial turbines: In these turbines, steam flows in a direction parallel to the axis of the turbine rotor.

What are the 5 parts of a windmill?

A wind turbine consists of five major and many auxiliary parts. The major parts are the tower, rotor, nacelle, generator, and foundation or base. Without all of these, a wind turbine cannot function.

What is an IP turbine?

intermediate-pressure turbine (IP turbine)

In a compound steam-turbine system or a three-spool gas-turbine engine, a turbine receiving steam or gas from the high-pressure turbine

Where is steam turbine used?

Steam turbines are used extensively in both large and small power plants to generate electrical power. Coal-fired, gas-fired, nuclear, and biomass fuels can be used to generate steam for steam turbine plants.

What is the working principle of turbine?

Wind turbines operate on a simple principle. The energy in the wind turns two or three propeller-like blades around a rotor. The rotor is connected to the main shaft, which spins a generator to create electricity.

What is working of turbine?

A wind turbine turns wind energy into electricity using the aerodynamic force from the rotor blades, which work like an airplane wing or helicopter rotor blade. When wind flows across the blade, the air pressure on one side of the blade decreases.

What are the two types of steam?

Types of Steam

• Pressure-Temperature Relationship of Water & Steam.
• Saturated Steam (Dry)
• Unsaturated Steam (Wet)
• Superheated Steam.
• Supercritical Water.
• Various States of Water.

How many types of steam are there?

Part one will review three specific types of steam: Utility, Saturated and superheated steam. Utility steam is sometimes called live steam, plant steam, essential steam, generator steam, but it really means utility steam.

How many types of turbine are there?

Reaction based turbines include three subtypes: Francis turbine, propeller turbine (bulb turbine, Straflo turbine, Kaplan turbine types), and kinetic turbine.

Which are the modern steam turbines?

Although there only two types of steam turbine there are numerous mechanical arrangements of these, which include reheat steam turbines, cross compound steam turbines, single casing turbines, tandem steam turbines, condensing and exhaust steam turbines and, axial and radial flow steam turbines.

What is steam turbine classification?

Classification of steam turbine

According to action of steam (a) Impulse turbine (b) Reaction turbine (c) Combination of both 2. According to direction of flow: (a) Axial flow turbine (b) Radial flow turbine 3. According to number of stages (a)Single stage turbine (b)Multi stage turbine 4 .

What is chest pressure in steam turbine?

It depends on what pressure the turbine is designed to run on. I have seen some large turbines run at about 600 psi at the steam chest. Chamber pressure drops off once the steam leaves the nozzle block and keeps dropping as it passes the buckets.

What is the most common bearing used in steam turbine?

Steam turbines have journal bearings and thrust bearings. Journal bearings are at each end of each rotor to support the weight of the rotor. One thrust bearing typically is provided for the entire steam turbine to maintain the axial position of the rotor.

What is steam reaction turbine?

Steam Turbines

A reaction turbine is constructed of rows of fixed blades and rows of moving blades. The fixed blades act as nozzles. The moving blades move as a result of the impulse of steam received (caused by a change in momentum) and also as a result of expansion and acceleration of the steam relative to them.

What is the difference between impulse and reaction turbine?

What is the difference between the Impulse and Reaction Turbine? In an Impulse turbine, All hydraulic energy is converted into kinetic energy by a nozzle whereas In a Reaction turbine Only some amount of the available energy is converted into kinetic energy.

Why LP turbine is double flow?

For turbines of large output, it is normal to have several double-flow low pressure (LP) cylinders operating in parallel. The second benefit is that the double-flow cylinder effectively reduces to zero the axial thrust caused by the steam forces on the moving blading.

Why is steam turbine efficiency so low?

A decrease of the steam pressure p_t in the condenser causes a decrease of the steam condensation temperature and consequently increases the temperature difference in the cycle. The efficiency of steam-turbine units increases when regenerative extraction of steam from the turbine is used.

Who invented steam turbines?

Gustaf de Laval Taqi ad-Din Muhammad ibn Ma'ruf Charles Algernon Parsons

What is steam turbine back pressure?

Back Pressure Turbines: a type of steam turbine that is used in connection with industrial processes where there is a need for low or medium pressure steam. The high pressure steam enters the back pressure steam turbine and while the steam expands – part of its thermal energy is converted into mechanical energy.

How does steam move a turbine?

As the name implies, a steam turbine is powered by steam. As hot, gaseous steam flows past the turbine' spinning blades, steam expands and cools, giving off most of the energy it contains. This steam spins the blades continuously. The blades thus convert most of the steam's potential energy into kinetic energy.

Why compounding of steam turbine is done?

Compounding of steam turbine is used to reduce the rotor speed. It is the process by which rotor speed come to its desired value. A multiple system of rotors are connected in series keyed to a common shaft and the steam pressure or velocity is absorbed in stages as it flows over the blades.

Who invented turbine in India?

Arun and Anoop George have invented a low-cost wind turbine that will make renewable energy accessible to the common man.

Can steam turbine operates without lubrication?

Steam turbines cannot operate without lubrication. Therefore, turbine lubricating oil systems must be designed, operated and maintained for extreme reliability.

What material is used for turbine blades?

Modern turbine blades often use nickel-based superalloys that incorporate chromium, cobalt, and rhenium. Aside from alloy improvements, a major breakthrough was the development of directional solidification (DS) and single crystal (SC) production methods.

Which is reaction turbine?

A reaction turbine is a type of turbine that develops torque by reacting to the pressure or weight of a fluid. The operation of reaction turbines is described by Newton's third law of motion (action and reaction are equal and opposite).
