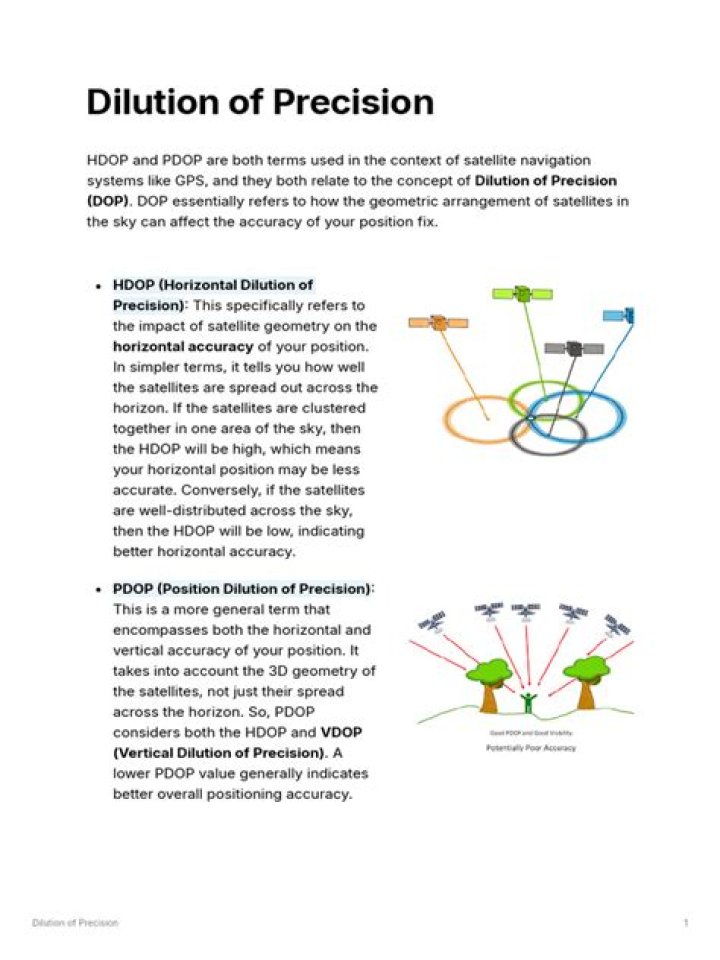

What affects dilution of precision measurements?
The larger the volume of the pyramid, the better (lower) the value of GDOP; the smaller its volume, the worse (higher) the value of GDOP will be. Similarly, the greater the number of satellites, the better the value of GDOP.
Then, how does a GPS receiver indicate that the accuracy of the displayed position is reduced?
Basically, the more signals a GPS receiver can “see” (spread apart versus close together), the more precise it can be. From the observer's point of view, if the satellites are spread apart in the sky, then the GPS receiver has a good GDOP. This lowers the quality of your GPS positioning potentially by meters.
Additionally, what is a good Pdop? The Position Dilution Of Precision (PDOP) provides a measure of the prevailing satellite geometry. Low PDOP values, in the range of 4.0 or less, indicate good satellite geometry, whereas a PDOP greater than 7.0 indicates that satellite geometry is weak.
One may also ask, how the position of satellites in the sky impacts DOP values?
With GPS receivers, when satellites are grouped together in the same general area of the sky, the satellite geometry is considered to be weak (higher DOP value). Thus, the more satellites available spread evenly throughout the sky, the better our positional accuracy will be (and the lower the PDOP value).
What does Hdop stand for?
HDOP
| Acronym | Definition |
|---|---|
| HDOP | Horizontal Dilution of Precision (Global Positioning System) |
| HDOP | Help Delete Online Predators |
Related Question Answers
What is the accuracy of GPS coordinates?
Accuracy indicates conformance with reality. Represented by a 2 digit number measured in meters, accuracy is the error margin in the reported latitude and longitude values relative to the ground truth. Most smartphone GPS receivers have an accuracy of 5 meters or approximately 15 feet.What factors affect GPS accuracy?
How accurate is GPS? It depends. GPS satellites broadcast their signals in space with a certain accuracy, but what you receive depends on additional factors, including satellite geometry, signal blockage, atmospheric conditions, and receiver design features/quality.What is the best GPS accuracy?
WAAS and CORS are able to correct for this better than a receiver's almanac, so the best you can do with uncorrected GPS is typically about 15 meters. Survey-grade GPS using RTK is able to achieve centimeter accuracy.How are tropospheric effects minimized by the GPS receiver?
The refraction is tantamount to a delay in the arrival of a GPS satellite's signal. For example, when a satellite is close to the horizon, the delay of the signal caused by the troposphere is maximized. The tropospheric delay of the signal from a satellite at zenith, directly above the receiver, is minimized.Which is a major source of error to the GPS position determination?
Since the signal reflecting off a surface can increase the distance from the satellite to the receiver, multi-path errors can affect the accuracy of positions by artificially increasing the pseudo-range. The major sources of GPS positional error are: Atmospheric Interference. Calculation and rounding errors.How can I improve my GPS accuracy?
To help Google Maps find your location with the most accurate blue dot, use high-accuracy mode.- On your Android phone or tablet, open the Settings app .
- Tap Location.
- At the top, switch location on.
- Tap Mode. High accuracy.
What causes GPS to lose signal?
When underground or indoors. Concrete and steel are the causes here, as the signal is thrown off from the satellites. Multipath. Again, when in an urban area, satellite signals may not reach your device as it is being reflected off tall buildings.Why are 4 GPS satellites needed?
You need four satellites because each data from one satellite put you in a sphere around the satellite. By computing the intersections you can narrow the possibilities to a single point. Three satellites intersection places you on two possible points. The last satellite give you the exact location.What does VDOP mean?
VDOP| Acronym | Definition |
|---|---|
| VDOP | Vulgar Display of Power (music album) |
| VDOP | Vertical Dilution of Position (GPS) |
Is GNSS the same as GPS?
GNSS stands for Global Navigation Satellite System, and is the standard generic term for satellite navigation systems that provide autonomous geo-spatial positioning with global coverage. This term includes e.g. the GPS, GLONASS, Galileo, Beidou and other regional systems.How does the satellite geometry affect the positioning accuracy?
When satellites are evenly spread throughout the sky, their geometry is considered strong (lower DOP value). Thus, the more satellites available spread evenly throughout the sky, the better our positional accuracy will be (and the lower the PDOP value).What is a good Hdop value?
Meaning of DOP Values| DOP Value | Rating |
|---|---|
| 1 | Ideal |
| 1-2 | Excellent |
| 2-5 | Good |
| 5-10 | Moderate |
