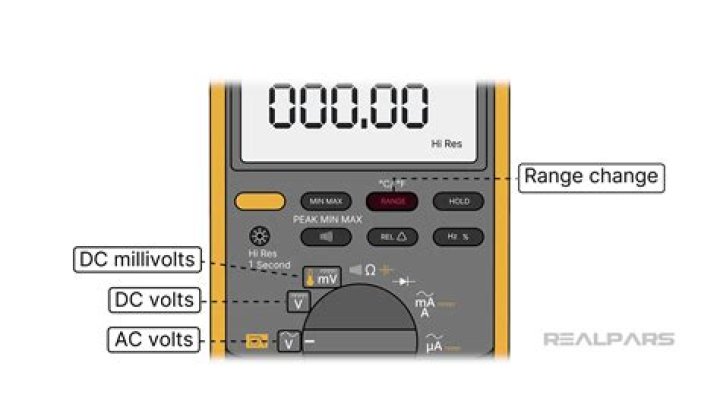

How multimeter is used as voltmeter?

The voltmeter function of your multimeter measures the electrical potential between two points in volts and is especially useful for checking whether a battery is nearly dead. Furthermore, multimeters enable you to measure current and voltage in two different modes: alternating current (AC) and direct current (DC).

Keeping this in view, is a voltmeter the same as a multimeter?

A voltmeter is an electrical instrument used to measure potential difference between two points in an electrical or electronic circuit. Therefore, a multimeter is one electrical instrument that can directly measure potential difference, current as well as resistance of an electric circuit.

Similarly, how is a multimeter used? A multimeter is mainly used to measure the three basic electrical characteristics of voltage, current, and resistance. It can also be used to test continuity between two points in an electrical circuit. Multimeters can be used for testing batteries, household wiring, electric motors, and power supplies.

In this way, how does a multimeter measure voltage?

A multimeter basically measures current in the order of microamps or milliamps. In modern meters this current flow is converted into a binary number by an analogue to digital converter circuit and then mathematical computational software converts this into an actual current , voltage or resistance reading.

How does a multimeter measure AC current?

. Some digital multimeters (DMMs) also include m ? .

First insert the black lead into the COM jack.

Next insert the red lead into the VΩ jack.

Connect the test leads to the circuit: black lead first, red second.

Read the measurement in the display.

Related Question Answers

What is the best multimeter?

Our Top 10 Picks for the Best Multimeters Reviews

INNOVA 3320-Best Multimeter For Beginners.
Fluke 87-V-Best Electrical Digital Multimeter for the Money.
Klein MM600 Multimeter Best Voltage Meter.
Mastech MS8268- Best Value Multimeter.
INNOVA 3340 Multimeter Best Meter For Electricians.
Fluke 323-Best Multimeter Brand.

Can a multimeter be used as a voltage detector?

This is a numerical voltage tester that can work in two ways. The tool includes wire leads similar to those found in a neon voltage tester or multimeter, which can be used to measure voltage or continuity by touching the leads to bare wires or metal contacts.

What is the price of digital multimeter?

Top Selling Multimeters Price List in India

Latest Multimeters Models	Expected Price
Kusam Meco 801- L Digital Multimeter Display Count 3999	Rs. 1956
Meco 101B+ Autoranging Digital Multimeter	Rs. 1201
MECO-G 3.1/2 Digit Multimeter with Capacitance, R-603A	Rs. 1016
Fluke 101 Basic Digital Multimeter	Rs. 2447

Why do you need a multimeter?

Multimeters are absolutely necessary for any type of electrical work. From installing a ceiling fan to changing a junction box, using a multimeter helps determine if wires are hot or not (and so much more). Multimeters are designed to measure three fundamental components of electrical energy: volts, amps and ohms.

Is a multimeter an ammeter?

A multimeter is a combination/integrated instrument intended as a piece of standalone test equipment. It combines a voltmeter, an ammeter for both AC and DC Volts and Amps, plus other functions, at minimum they will usually do resistance and capacitance.

Does current flow through voltmeter?

An ideal voltmeter has infinite internal resistance, so no current at all goes through it.

What is the difference between a galvanometer and a multimeter?

The main difference between galvanometer and voltmeter is that a galvanometer is a type of device which has parts that move in response to an electric current, whereas a voltmeter is a device that is used to measure the potential difference (voltage) in a circuit. Voltmeters are only used to measure voltage.

Are batteries AC or DC?

Batteries are DC; they generate voltage in only one direction, and they have a polarity of positive and negative. Household AC voltage is created by spinning turbines. But there are some power packs that simply drop the voltage down withOUT converting it to DC. It's still AC, and that's what your pedal requires.

What should you not do with a multimeter?

To avoid electric shock, follow the below tips:

Make use of your personal protective materials.
When working near or on energized or exposed circuit, do not work alone.
Avoid operating the meter in damp or humid environments.
Watch for the audio or visual warnings in your multimeter display unit.

What is the symbol for voltage on a multimeter?

Voltage is measured in volts. The symbol for volts is V. Current is how much electricity is flowing through the circuit.

What happens if you measure DC voltage with AC multimeter?

AC will display as zero voltage on a DC setting, regardless of the polarity. Measuring DC on an AC setting will depend on the meter. The meter rectifies AC to turn it into DC for a reading. DC with polarity in reverse of the rectifier will read zero.

Is a house AC or DC?

Many devices in your house need DC. When you plug things into the outlet in your house, you don't get DC. Household outlets are AC - Alternating Current. This current has a frequency of 60 Hz and would look something like this (if you plotted current as a function of time).

What are the two types of multimeter?

There are two basic types of multimeters: digital multimeters and analog multimeters. Digital multimeters are superior to analog multimeters because of their better accuracy in measurements, sensitivity to very small changes in input voltages, and clear and easy-to-read displays.

How do I use a multimeter to test a battery?

1. How to Test Your Car Battery's Charge Using a Multimeter

First, set your voltmeter to 20 DC volts.
Touch the negative (black) battery terminal with the negative (black) meter probe.
Touch the positive (red) battery terminal with the positive (red) meter probe.

Who invented multimeter?

Donald Macadie

What does DCA mean on a multimeter?

Direct Current Amperage

How do I measure voltage without a multimeter?

If it glows well , then you have rated voltage supply, if it glows gloomy or not at all, then your voltage is under rated which should be enhanced. There is another option also you can try to measure voltage by looking at your domestic electricity meter, sometime it shows the voltage value.

How do I calculate current?

Ohms Law and Power

To find the Voltage, ( V ) [ V = I x R ] V (volts) = I (amps) x R (Ω)
To find the Current, ( I ) [ I = V ÷ R ] I (amps) = V (volts) ÷ R (Ω)
To find the Resistance, ( R ) [ R = V ÷ I ] R (Ω) = V (volts) ÷ I (amps)
To find the Power (P) [ P = V x I ] P (watts) = V (volts) x I (amps)
