How many wires do you need for a garage door opener?
In that case you should find 2 wires running to each side of the door, 2 to the button location, and all 6 to the opener unit. If that is the case, then draw a little matrix to show which wires in the wall will correspond to the wires described in the manual.
Also question is, how do you wire a Chamberlain garage door sensor?
Strip 7/16-inch of insulation from each solid-white and white-with-black-stripe wire on both sensors. Twist together the two white-with-black-stripe wires from both sensors. Twist together the two solid-white wires from both sensors. Connect the two white-with-black-stripe wires to screw terminal 3 on the motor unit.
Subsequently, question is, can I use 18 gauge wire for garage door? Most any light wire will work. Check your local hardware stores, Lowes, etc. Bell wire, thermostat wire, telephone wire, even zip cord (stuff used for lamps, etc).
Consequently, what wire do you use for garage door opener?
This 2 Conductor bell wire is used for wiring safety beams or a wall console to the garage door opener power head.
Does Garage Door Opener need dedicated circuit?

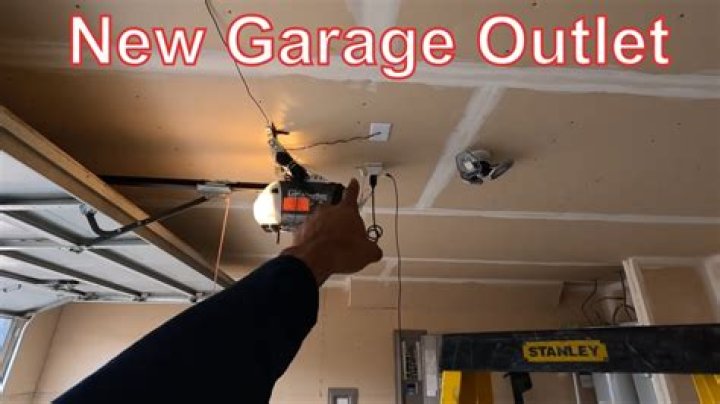

A separate circuit is not required for a garage door opener, however in many jurisdictions, it cannot be plugged into an existing electrical outlet via an extension cord. A new outlet, near the unit is required.
Related Question Answers
How do you wire a 3 button garage door opener?
How to wire multiple 3-button control stations- Connect each open button (opposite of the common side) to the open terminal of the operator.
- Connect each close button (opposite of the common side) to the close terminal of the operator.
- Connect the common side of one of the 3-button control stations to the common terminal of the operator.
Can you add a second garage door opener?
Yes you can, unless it uses a fancy communication board. If you can control the lights and the door from the controller you may not be able to simply splice the wire. I used doorbells to add openers at two other locations for a friend of mine.How many volts is a garage door opener button?
The garage door openers (2) each have a 24 volt AC - DC converter for the logic circuits.How can I hide my garage door opener wires?
Cut a piece of PVC pipe in half lengthwise and mount it over the wires secured with a couple of straps. Re: How do you hide grage door wires? Or, on two occasions I have use an old fashioned beer can opener with the pointed end to cut a groove in the dry wall about 1/8 inch deep.How many amps does a garage door opener use?
LiftMaster Professional Models| Garage Door Opener Type | Includes Models (Examples) | Amps/Watts |
|---|---|---|
| ½ HP AC Chain Drive 1 Light | 3255, 1355, 1356 | 4.5 amps/540 W |
| ½ HP AC Chain Drive 2 Lights | 3265 | 4.5 amps/540 W |
| ¾ HP AC Chain Drive | 8587* | 5 amps/600 W |
| ½ HP Screw Drive | 3240 | 4.5 amps/540 W |
Can you bypass the sensors on a Chamberlain garage door opener?
Disconnecting the garage door opener from the garage door will bypass the sensors. According to the home improvement website Hunker, “Pull the emergency release cord to disconnect the garage door from the opener. The emergency release cord attaches to a spring lock on the door trolley.What is the purple wire on my garage door opener?
It is the antenna, but it is color coded so you know you have the purple model. There is also a square purple button. This is the programming button. On mine (again, yours might be different) I had to hold that until the light blinked, then hold the handheld unit near it so they can read each other.Can you wire around garage door sensors?
When you've got your new sensors, you'll need to strip the rubber casing from the ends of the wires. Twist the cut end of the wires on the garage doors together with the wires in the new sensors. The black wires need to be twisted together, then the white wires twisted to each other.How do you install a wired garage door keypad?
How to Wire a Garage Door Keypad- Connect the two wires from the button switch on the keypad to the switch/program box inside the garage.
- Find a good location outside your garage for the keypad and drill a hole of at least ½ in from the outside to inside.
- Feed the cable inside.
Are garage door sensors universal?
All garage door sensors work the same way and serve the same purpose. There are several different brands of sensors. Some models are advertised to be universal, which means a specified unit will be compatible with garage door openers associated with names such as LiftMaster, Chamberlain, Craftsman, and others.What voltage are garage door sensors?
The voltage at the operator unit at the sensor wire connectors with the wires removed is about 1 1/2 volts. I have seen other notes that this should be around 5 volts. Does this indicate that the logic board is bad? An expert shall have an answer to your question within 24 to 48 hours.How does a garage door wall switch work?
In addition to a remote control, garage door openers typically have a hard-wired wall switch inside the garage to open and close the door without needing to use a wireless remote. Similar to a doorbell switch, a push-button garage door switch sends a signal to the door opener to raise or lower the door.Will a doorbell button work for a garage door opener?
Check the voltage and current ratings of the switch. If it is more than the operating circuitry of the door automation - then you can definitely use it.What gauge wire do I use?
Why Wire Gauge Is Important| Wire Use | Rated Ampacity | Wire Gauge |
|---|---|---|
| Low-voltage lighting and lamp cords | 10 amps | 18-gauge |
| Extension cords (light-duty) | 13 amps | 16-gauge |
| Light fixtures, lamps, lighting circuits | 15 amps | 14-gauge |
| Kitchen, bathroom, and outdoor receptacles (outlets); 120-volt air conditioners | 20 amps | 12-gauge |
How do you wire a craftsman 1/2 hp garage door opener?
How to Wire a 1/2 HP Craftsman Garage Door Opener- Remove the permanent cord from the motor by taking off the motor cover and unscrewing the terminal screws that hold the cord in place.
- Run the safety sensor wiring by running the bell wires from both of the sensors -- located on each side of the door about 4 inches above the ground -- to the rail at the door header.
