A generator has a prime mover like a turbine or diesel generator. The excitation system creates the electromagnetic field in the rotor. The stator has the armature winding that has the electrical energy induced. The stronger the magnetic field created, the stronger the electrical power produced. Just so, why do generators need excitation?
The rotor or the field coils in a generator produce the magnetic flux that is essential to the production of the electric power. The rotor is a rotating electromagnet that requires a DC ( Direct Current) electric power source to excite the magnetic field. This power comes from an exciter.
Subsequently, question is, why is excitation needed? Excitation in an alternator is the current applied to the rotor to make it a magnet with fixed polarity. If we apply AC excitation voltage to the rotor, then its magnetic field will alternate due to the excitation and the stator windings will receive alternating flux varying both with rotation and AC excitation.
In this regard, what is excitation voltage in generator?
An excitation voltage is the amount of direct voltage required to excite a certain field coil. Excitation is required to create magnetic field around the coils . Instead of using permanent magnet we use electromagnets to create magnetic flux lines… The excitation is done to saturate the coils in a certain limit.
What happen when generator loss excitation?
When a generator loses its excitation, the rotor current gradually decreases and the field voltage decays by the field time constant as well. In this case, the generator operates as an induction generator and draws reactive power from the power system instead of generating reactive power.
Related Question Answers
Why DC is used for excitation?
For successful operation of alternator it must produce sinusoidal AC voltage at a particular frequency. Now, dc excitation produce a fixed polarity electromagnet in field which runs at a constant speed by the prime mover. Thus it produce almost a sinusoidal AC by the stator armature. What happens if AVR fails?
When AVR fails a protection called Field Failure protection will come into picture and trip the generator. If Failure of field is associated with under voltage which might happen due to severe fault near the generator and AVR might trip not able to maintain the voltage, the generator is tripped instantaneously. What happens when excitation of synchronous generator fails?
If the excitation of the generator fails, suddenly there will be no more magnetically locking between rotor and rotating magnetic field of stator. But still the governor will supply same mechanical power to the rotor due to this sudden magnetic unlocking; the rotor will be accelerated beyond the synchronous speed. How does an AVR work on a generator?
OPERATION THEORY. An automatic voltage regulator (AVR) is a electronic device for automatically maintaining generator output terminal voltage at a set value under varying load and operating temperature. It controls output by sensing the voltage Vout at a power-generating coil and comparing it to a stable reference. What is self excitation in generator?
Self-Excitation of Generators. a kind of excitation of generators where the magnetic field of the main poles is excited by a current supplied to the windings of the main poles from the armature (rotor) winding. How does a PMG generator work?

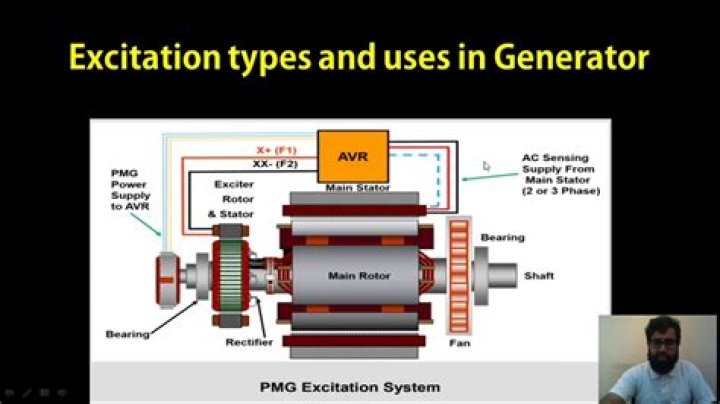

A permanent magnet alternator (also called PMA, permanent magnet generator, PMG or magneto) relies on the magnetic field generated by a permanent magnet to convert mechanical energy into electrical power. It can generate AC current, with which it can power the whole engine and charge the battery. What controls the voltage in a generator?
The stator winding of this alternator puts out an AC current/voltage to a voltage regulator. The voltage regulator turns that AC input into a DC output which is controlled so as to ultimately control the current into the main generator field. What is the excitation voltage?
An excitation voltage is the amount of direct voltage required to excite a certain field coil. Excitation is required to create magnetic field around the coils . The excitation is done to saturate the coils in a certain limit. What is a generator AVR?
An automatic voltage regulator (AVR) is a electronic device for automatically maintaining generator output terminal voltage at a set value under varying load and operating temperature. It controls output by sensing the voltage Vout at a power-generating coil and comparing it to a stable reference. What are the types of excitation system?
There are nineteen different excitation types in three major groups: Direct Current Commutator Exciters (type DC), Alternator Supplied Rectifier Excitation Systems (type AC) and Static Excitation Systems (type ST). What is excitation control?
Excitation system, an integral part of the synchronous generator, performs control and protection functions that include control of voltage and reactive power. This function is performed by the power system stabilizer (PSS) that generates a control signal introduced as a supplementary input into the excitation system. How do you increase the voltage of a generator?
You could increase the output voltage of a generator by rotating it faster, increasing the number of turns on the coil or using stronger magnets, The output of the ac. Does alternator need excitation?
The field windings on the rotor (shaft) of an alternator need to be energized (creating field excitation) in order to create a magnetic field to induce voltage when passed through the conductors of the alternator's armature. What is excitation process?
The process of excitation is one of the major means by which matter absorbs pulses of electromagnetic energy (photons), such as light, and by which it is heated or ionized by the impact of charged particles, such as electrons and alpha particles. Why excitation is required for alternator?
The primary reason lies in the principle of operation of Synchronous machines. The rotor acts as an electromagnet with a constant flux and gets interlocked with the rotating flux of stator to provide a constant speed rotation. The rotor needs to have a constant flux and that's why the dc excitation is provided. What does an exciter do?
Exciter (effect) An exciter (also called a harmonic exciter or aural exciter) is an audio signal processing technique used to enhance a signal by dynamic equalization, phase manipulation, harmonic synthesis of (usually) high frequency signals, and through the addition of subtle harmonic distortion. What are two main advantages of DC excitation?
The automatic excitation regulator of excitation system plays a great role in improving the stability of parallel units in power system. Especially, the development of modern power system leads to the decrease of unit stability limit, and also promotes the continuous develop What is self excitation in alternator?
Self-Excitation of Generators. a kind of excitation of generators where the magnetic field of the main poles is excited by a current supplied to the windings of the main poles from the armature (rotor) winding. Self-excitation is made use of most often in DC generators. How synchronous motor works as a power factor correction?
An over-excited synchronous motor has a leading power factor. This makes it useful for power factor correction of industrial loads. Both transformers and induction motors draw lagging (magnetising) currents from the line. This improves the plant power factor and reduces the reactive current required from the grid.
