How do you test a 24v motor?

Connect it to a variable DC power supply capable of supplying the current that the motor needs. Slowly increase the voltage from zero. The motor should start running at much less than 24 volts. If it does, increase the voltage to 24 volts.

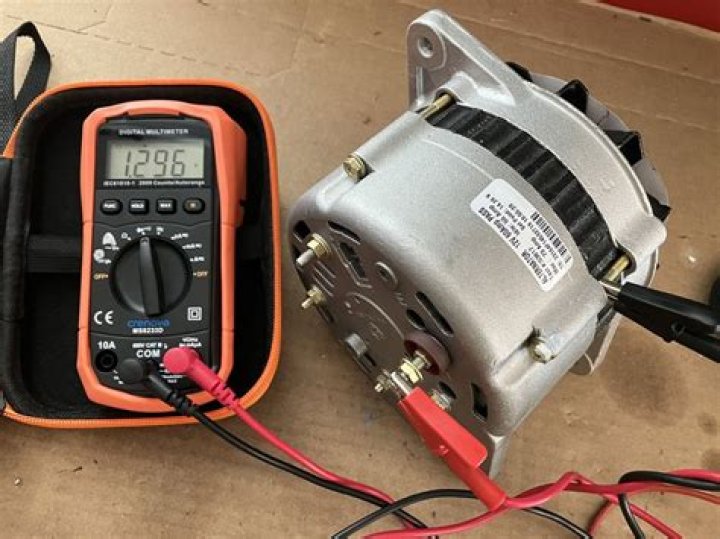

Similarly, how do you test a motor with a multimeter?

If the shaft turns freely, set the multimeter to its ohms function. The windings (all three in a three-phase motor) should read low but not zero ohms. The smaller the motor, the higher this reading will be, but it should not be open.

One may also ask, how do you check if a motor is good? Check for shorts between the power wiring and ground. Select ohms resistance on the multi-meter and set for the 30,000-ohm range. Touch one lead to each motor power lead and the other to the metal motor casing. Any value less than about 0.2 mega ohms is a reason to discard the motor.

Similarly, how do you know if a motor is bad on a multimeter?

With a multimeter set to low ohms (usually 200), test between each winding terminal and the metal casing of the motor. If there is any reading on any of these then the motor is bad, do not use it. You may find that when it runs ungrounded that the casing becomes live at up to supply voltage.

How do I know if my electric motor is bad?

Check for shorts between the power wiring and ground. Select ohms resistance on the multi-meter and set for the 30,000-ohm range. Touch one lead to each motor power lead and the other to the metal motor casing. Any value less than about 0.2 mega ohms is a reason to discard the motor.

Related Question Answers

How do you test an electric motor coil?

The field if it has 4 wires will be built in 2 halves, each having two wires on them. There should be continuity between the wires on one coil winding but not across the two. If it has 2 wires there should be continuity between the wires but to no other metal on the coil.

How do you test a 12 volt motor with a multimeter?

Set the dial on the voltmeter to "Ohms." Touch one of the voltmeter leads to one of the terminals on the motor and touch the other lead on the voltmeter to the other terminal on the motor. The Ohm reading should be at or near "0." A .

How do you check a motor short circuit?

How to Test Your Spindle Motor for Open or Short in Windings

1. Set your multimeter to Ohms.
2. Test T1 to T2, T2 to T3, and T1 to T3.
3. If your spindle motor fails the test, you may want to make sure the problem is not with the connector, which may have coolant on it that's interfering with your results.
4. Check your inserts.

How do you determine if a motor is AC or DC?

(iv) has 2 terminals, then it may be either a 1-phase AC machine or a DC machine. Look for the stator core construction and rotor. If there is no commutator, then it is a AC motor. If there is a commutator and brushes, it may be either a DC motor or an AC commutator motor (Universal motor).

How do you know if a 3 phase motor is bad?

Check all three wires singly T1,T2,T3 (all three phases) to the ground wire. Readings should be infinite. If its zero or reads any continuity at all, then a problem exists with either the motor or cable . If it is go directly to the motor and disconnect from cable and check motor and the cable separately.

How many ohms should a motor read?

0.5 ohms

How do you check motor overload?

To run the test perform the following steps:

1. Turn the FLA dial back to its proper setting and let the motor run for at least 5 minutes.
2. Open the contact(or) while the motor is running and start a timer.
3. The overload should trip in around 3 seconds, or within 10 seconds maximum.

How do you ohm out a motor?

Using Ohm meter: Disconnect all power from machine. Check all three wires singly T1,T2,T3 (all three phases) to the ground wire. Readings should be infinite. If its zero or reads any continuity at all, then a problem exists with either the motor or cable .

How do you clean electric motor windings?

Originally Answered: How do I wash the winding of an electric motor? Dip the winding in hot fresh water and let it stay there for ~ 20 min to loosen dirt & grease. Repeat if necessary. Air dry and if feasible oven dry thereafter.

How do you troubleshoot a single phase motor?

Troubleshooting split-phase (single phase) motors

1. Turn power to motor OFF.
2. Check to determine if the motor is controlled by a thermal switch.
3. If the motor does not start, use a voltmeter, such as a Fluke 87V Industrial Multimeter, to check for voltage at the motor terminals.

How do you troubleshoot an electric motor?

8. Motor Vibrates

1. Motor misaligned to load. Realign the load.
2. Load out of balance (direct drive application) Remove the motor from load and inspect the motor by itself.
3. Defective motor bearings. Test the motor by itself.
4. Load too light (single phase only)
5. Defective winding.
6. High voltage.

How do you test a ECM motor?

This plug carries control signals between the IFC and the ECM Motor. If the motor does not run, make sure you have power to the IFC board and then check the voltage between pins 4 and 5 of the 5 pin plug on the motor. You should read 115 volts. If voltage is not present, the motor will not run.

What is Type test of motor?

Generally the motor test can be classified into type and routine test. Type test includes winding resistance measurement, load test and breakdown test. Routine test includes no load, locked rotor and insulation resistance.

Why do electric motors fail?

The most common cause of motor failure, and arguably the most difficult to overcome, is low resistance. Low resistance is caused by the degradation of the insulation of the windings due to conditions such as overheating, corrosion, or physical damage.
