How do you set up a management VLAN?

How Do I Configure Management VLAN?

1. On the CPE, enable Management VLAN and specify the VLAN ID.
2. On the Switch, create a VLAN with Management VLAN ID. Specify the port that is connected to the PC as untagged port and add it to the VLAN. Specify the port that is connected to the CPE as tagged port and add it to the VLAN.

Correspondingly, how do you set a management IP on a Cisco switch?

Here are the steps to configure an IP address under VLAN 1:

1. enter the VLAN 1 configuration mode with the interface vlan 1 global configuration command.
2. assign an IP address with the ip address IP_ADDRESS SUBNET_MASK interface subcommand.
3. enable the VLAN 1 interface with the no shutdown interface subcommand.

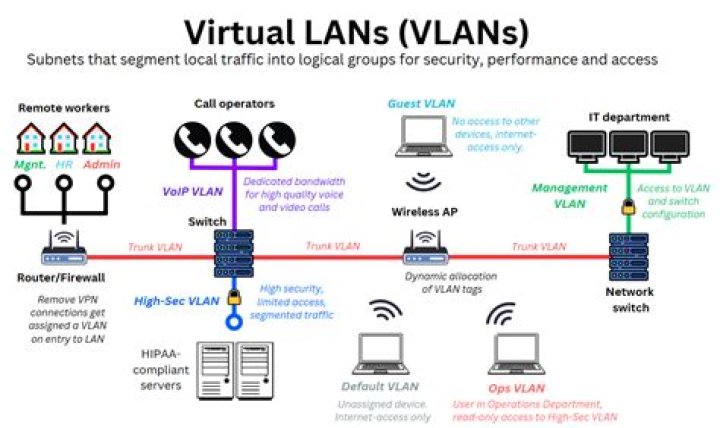

Furthermore, what is the purpose of a management VLAN? Management VLAN is used for managing the switch from a remote location by using protocols such as telnet, SSH, SNMP, syslog etc. After configuring IP address and default gateway for Management VLAN, you can telnet or SSH to the switch to perform switch management functions.

Similarly, you may ask, what is management VLAN in Switch?

Management VLAN is used for managing the switch from a remote location by using protocols such as telnet, SSH, SNMP, syslog etc. Normally the Management VLAN is VLAN 1, but you can use any VLAN as a management VLAN. You must configure IP address and default gateway for Management VLAN.

What is the difference between native VLAN and management VLAN?

Native Vlan is the vlan which will be sent untagged even in Trunk links. Management vlan is different, it means that this vlan will be used for management purposes like Logging into the switch for management, Monitoring the switch,collecting Syslog ans SNMP traps, etc will be done by management vlan IP.

Related Question Answers

How does voice VLAN work?

The voice VLAN is an ingenious feature that enables access ports to carry voice traffic from an IP phone. Cisco IP phones connect to the IP network using Ethernet to send Voice over IP (VoIP) packets. If you have access to a Cisco IP Phone, turn it upside down and you would find two Ethernet ports at its bottom.

How do I give my management IP address to a switch?

Configure an IP address on a switch

1. enter the VLAN 1 configuration mode with the interface vlan 1 global configuration command.
2. assign an IP address with the ip address IP_ADDRESS SUBNET_MASK interface subcommand.
3. enable the VLAN 1 interface with the no shutdown interface subcommand.

What type of VLAN is the default VLAN?

On Cisco switches the default VLAN is VLAN 1. VLAN 1 has all the features of any VLAN, except that you cannot rename or delete it. A data VLAN that can also be referred to as user VLAN. This is configured to carry only user-generated traffic.

What is native VLAN?

native vlan means that device will never put/insert tag (VLAN ID, in you case "VLAN ID:2") on Ethernet frame when it leaves port and also when Ethernet frame without tag go into that port device will put/insert tag defined by native vlan ( in you case VLAN ID:2). Of course native vlan relates to trunk port.

How do I assign an IP address to a VLAN?

In the Mobility Master node hierarchy, navigate to the Configuration > Interfaces > VLANs page. Select a VLAN from the VLANs table, and then select a VLAN ID under Vlan Ids. Under IPv4, select Static from the IP assignment drop-down list. Enter the IPv4 address of the VLAN interface.

What is management interface Cisco switch?

Unlike the routers that allow for management on any configured interface, with switches you are not able to associate IP addresses to the physical ports or interface; rather, you associate the IP address to a virtual interface that is implicitly created with a Virtual LAN (VLAN).

Do switches use IP addresses?

It is a ethernet switch and its Switches ethernet packets and on the level of ethernet packets there are no IP addresses. switch. Unmanaged switches do not have an IP address. Managed switches and L3 switches do have an IP address.

How do I configure an unmanaged switch?

Connect an Ethernet cable with a connection to the network to the first port on the left. Check the light associated with that port to ensure it illuminates after you connect the cable. Connect an Ethernet cable from each device that will share the network connection to an open port on the switch.

What are the steps to configure a switch?

1. Step 1: Cable a network.
2. Step 2: Clear the configuration on the switch.
3. Step 1: Enter privileged mode.
4. Step 2: Examine the current switch configuration.
5. Step 3: Display Cisco IOS information.
6. Step 4: Examine the Fast Ethernet interfaces.
7. Step 5: Examine VLAN information.
8. Step 6 Examine flash memory.

What are three characteristics of an SVI?

What are three characteristics of an SVI? (Choose three.)

• It is designed as a security protocol to protect switch ports.
• It is not associated with any physical interface on a switch.
• It is a special interface that allows connectivity by different types of media.
• It is required to allow connectivity by any device at any location.

How do I manage a Cisco switch?

How to configure Cisco switches – A step by step guide

1. 1 Before We Begin: Know What Hardware You're Using and Download PuTTY.
2. 2 Connect the Switch to PuTTY.
3. 3 Enter Privileged EXEC Mode and Set a Hostname for the Switch.
4. 4 Assign a Password to the Switch.
5. 5 Configure Telnet and Console Access Passwords.
6. 6 Configure IP Addresses With Telnet Access.

How do I configure SSH?

Once you enable SSH, you can access it remotely using PuTTY or any other SSH client.

1. Setup Management IP. First, make sure you have performed basic network configurations on your switch.
2. Set hostname and domain-name.
3. Generate the RSA Keys.
4. Setup the Line VTY configurations.
5. Create the username password.
6. Verify SSH access.

Why does a switch need an IP address?

2 Answers. An IP address on a true layer 2 only switch is used for management (accessing the CLI remotely, sending SNMP traps, logging, TACACS/RADIUS, etc.). The IP address on the switch is in no way required for the switch to actually do its job, which is to switch frames.

What is the default IP address for a Cisco switch?

10.0.0.1

What is VLAN example?

Each virtual switch, or VLAN, is simply a number assigned to each switch port. For example, the two switch ports in the red mini-switch might be assigned to VLAN #10 . The two ports in the orange mini-switch might be assigned to VLAN #20 .

What VLAN does DTP use?

VLAN trunks formed using DTP may utilize either IEEE 802.1Q or Cisco ISL trunking protocols. DTP should not be confused with VTP, as they serve different purposes. VTP communicates VLAN existence information between switches. DTP aids with trunk port establishment.

Should one use VLAN?

The advice is always to not use VLAN 1, so if an attacker or unwanted client connects and ends up on VLAN 1 and there is nothing configured on this VLAN, such as a useable gateway, they are pretty much stuck and can't go anywhere, while you native VLAN is something like VLAN 900 which is less likely to have any port

Is VLAN 1 the native VLAN?

In the case of Cisco (and most vendors), the Default Native VLAN is VLAN 1. Which is to say, if you do not set a Native VLAN explicitly, any untagged traffic received on a trunk port is automatically placed in VLAN 1.

What is a best practice for VLAN design?

What is a best practice for VLAN design? Choose the correct answer: Local VLANs should not extend beyond the distribution layer. Place unused access ports in trunk mode and in a specific VLAN.

What does show VLAN brief do?

show vlan brief Displays a brief table of the VLANs, including the port membership for each VLAN. Displays Spanning Tree information for the switch or a VLAN if the vlan option is used.

Is VLAN 1 tagged?

As VLAN 1 is the default native VLAN, it is used for untagged traffic. If you need to pass frames tagged VLAN 1, you will not be able to, by default. The solution is to change the default VLAN to another value.

Can you use VLAN 1?

The advice is always to not use VLAN 1, so if an attacker or unwanted client connects and ends up on VLAN 1 and there is nothing configured on this VLAN, such as a useable gateway, they are pretty much stuck and can't go anywhere, while you native VLAN is something like VLAN 900 which is less likely to have any port

What is a black hole VLAN?

It is a a vlan that is unused where you put unused ports in or hosts that you dont want to be on the network. The idea is that if the native VLAN on a trunk is an actively used VLAN somewhere else in the network, it could be used to cause traffic to hop across VLANs at a VLAN trunk port.

Does VLAN need IP address?

This IP address can only be used as the default gateway on a multilayer switch. A VLAN (Virtual Local Area Network) is its own logically segregated broadcast domain. You assign networks, or subnets, just as you would with a physically separated broadcast domain. VLANs do not really have IP addresses assigned to them.

Can two VLANs have the same IP address?

Using the Same IP Address in Two Different VLANs. The OSA-Express Layer 2 implementation allows the hosts to manage IP addresses and ARP cache, so it is possible to have a single guest LAN segment (or VSWITCH segment) where two different hosts use the same IP Address on different VLAN groups.

Can you assign an IP address to a switch port?

No, that's not what they're for. The only IP address you can assign to a switchport in a Cisco switch is for the so called Switch Management Interface Cisco Networking: Switch Management Interface Configuration - dummies . Other than that, switches work with MAC addresses, because they sit on Layer 2 (Data Link Layer).

What is VLAN IP address?

Specifically, it is the IP address of the "switch" the VLAN is on. It doesn't necessarily have to be the gateway IP for the VLAN but typically is since you typically setup IP addresses on the VLAN at the Layer 3 "router" for the VLAN and thus use this IP address for the gateway for clients on that VLAN.

How do I assign a port to a VLAN?

Use the switchport access vlan command to assign the port or range of ports into access ports. A port in access mode can have only one VLAN configured on the interface which can carry traffic for only one VLAN. The options are: vlan-id - Specifies the VLAN to which the port is configured.

How do I find the IP address of a VLAN on a Cisco switch?

To display VLAN information, use the show vlan command in privileged EXEC mode.

What is the difference between VLAN and subnet?

Subnet is an IP address range of IP addresses that help hosts communicate over layer 3. VLAN allows us to create different logical and physical networks. Subnet allows us to create logical networks through the same physical network. A VLAN is configured at server/router side.

What is VLAN routing?

In a LAN environment, VLANs divide broadcast domains. When a host in one VLAN must communicate with a host in another VLAN, the traffic must be routed between them. This type of routing is called inter-VLAN routing. By default, a port is enabled for bridging rather than routing.
