How do you pour a monolithic concrete slab?

6 Steps of a Monolithic Pour - Pouring the Foundation for

1. 6 Steps of a Monolithic Pour. [00:01]
2. First fill the perimeter footings. Ours are 24" deep and 12" wide. [00:39]
3. Next the pad is poured. [00:51]
4. Starting to pour second section. [03:24]
5. Notice the screeding and bull float level and blend the sections. [03:35]
6. Hand troweling the slope for the french well. [04:30]
7. Step 4-J bolts put in the concrete. [04:38]
8. Off comes the forms. [06:47]

Correspondingly, how deep does a monolithic slab need to be?

THE MONOLITHIC SLAB CONSTRUCTION PROCESS

They average only four inches thick and the footings only reach about 12 inches from the base to the top of the floor. This means you'll only have to dig down about six inches and the entire thing can be done by hand if you're motivated enough.

Also, is a monolithic slab better? There are some advantages of monolithic slabs. Compared to the stem-wall slab, it is faster to construct and lower in cost due to less labor being required. They tend to crack along the thickened perimeter when significant weight loads are used, like block exterior walls.

Then, what is a monolithic concrete pour?

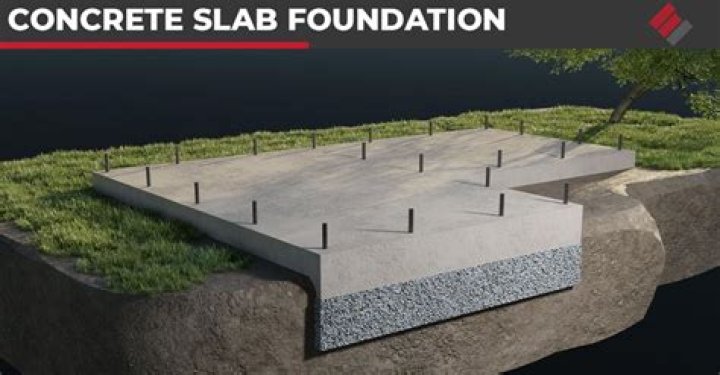

Monolithic slabs are foundation systems constructed as one single concrete pour that consists of a concrete slab with thickened portions of the slab under load bearing walls and all perimeter edges that take the place of footers.

Does a concrete slab need footings?

All 3 types of slabs will need a footer and a slab of at least 4″ thick. The footers depth needs to be the depth of the frost line or as per local code, but no less than 12″ deep. Slab Foundations Like all foundations, the slab starts with concrete footers poured 24 inches below projected finish grade.

Related Question Answers

What is a floating concrete slab foundation?

Floating slabs are concrete slabs that are laying over the ground, without any kind of anchoring, as if it simply sits on it and floats. The main application of floating slabs is to use as a base foundation for sheds, manufacturing workshops, home additional room, or garages.

What is a monolithic pad?

Monolithic means “all in one pour” so the foundation is constructed in one single pour that is made up of a concrete slab with thicker areas under load bearing walls and all perimeter edges to take the place of footers. Because this Slab is poured all at once, it is much faster and keeps labor costs low.

What is slab concrete grade?

Slab-on-grade or floating slab foundations are a structural engineering practice whereby the concrete slab that is to serve as the foundation for the structure is formed from a mold set into the ground. The concrete is then placed into the mold, leaving no space between the ground and the structure.

Does a detached garage need a foundation?

Most detached garages are not required to be built on frost footing/foundation; however, this may depend on the grade or soil conditions of your property. The first two examples are most typical. Floating Slab-On-Grade: Wall framing and plate lay directly on thickened perimeter footing.

Can I build a garage on a concrete slab?

You may want to consider a 6" thick slab for larger vehicles such as trucks or RVs. For a garage WITHOUT a floor - BUILT ON SITE: Prepare a level concrete slab at least 4” thick and to the exact, outside, dimensions of your garage. You may want to consider a 6" thick slab for larger vehicles such as trucks or RVs.

Do I need a footer for a garage?

Most detached garages are not required to be built on frost footing/foundation; however, this may depend on the grade or soil conditions of your property. The first two examples are most typical. Floating Slab-On-Grade: Wall framing and plate lay directly on thickened perimeter footing.

How do you know if a foundation is monolithic?

Monolithic foundations are found with both block and poured walls. The difference is that the floor and footing are poured in one piece instead of two. In other words, the floor is poured with thick edges to it -- and those thick edges are the footing.

What is a turned down footing?

Turned-down footings are a convenient and expedient construction alternative to traditional footings, concrete stem walls or concrete masonry unit (CMU) stem walls for a variety of reasons.

Can I pour footing and slab together?

However, you may alter this construction standard by pouring a floor and footer at the same time in certain situations. Known as slab-on-grade, or a monolithic pour, this foundation method is quicker and less expensive than a multisegment pour. Soil type is essential to single-pour success.

What are the 3 types of foundations?

But chances are your house has (or will have) one of these three foundations: full basement, crawlspace, or slab-on-grade. Other variations are possible. Here are the three main types of house foundations that you will encounter in residential construction.

What is the difference between a monolithic slab and a floating slab?

The floating slabs are called as monolithic slabs as they have no connection with the foundation. If it's the case, only after curing of the foundation we cast the floating slab.

How much does a monolithic slab cost?

The cost of a monolithic concrete slab is $5 per square foot, resulting in an average total cost of $4,600 to $20,000.

How do you prepare for a slab foundation?

Preparing for Slab Foundation Construction

1. 1 – Frame the Area for the Slab. Using 2-inch by 12-inch boards, make a frame around the area where the slab is going to be poured.
2. 2 – Level the Ground within the Form. Shovels and rakes must be used to completely level the ground within the form.
3. 3 – Dig Footings.
4. 4 – Tamp the Ground Down.
5. 5 – Prepare Rebar.

How do you pour a concrete slab with footings?

Fill the footing forms with concrete and use a piece of 2” X 4” to level it. Install anchor bolts every 12”. Continue pouring concrete into the center of the form creating a concrete pad 4” to 6” deep and level with the top of the exterior footings. Use long handled trowels to smooth the interior pad.

What does slab mean?

(Entry 1 of 3) 1 : a thick plate or slice (as of stone, wood, or bread): such as. a : the outside piece cut from a log in squaring it. b : concrete pavement (as of a road) specifically : a strip of concrete pavement laid as a single unjointed piece.

What is a turndown concrete slab?

A turndown edge lets us build up the edge of a patio without the expense of having to build a retaining wall under it. We simply form up the edge, shape the gravel under the slab to create a shape similar to the image, and pour the concrete.

What's a monolithic?

made of only one stone: a monolithic column. consisting of one piece; solid or unbroken: a boat with a monolithic hull. constructed of monoliths or huge blocks of stone: the monolithic monuments of the New Stone Age. characterized by massiveness, total uniformity, rigidity, invulnerability, etc.: a monolithic society.

What is the strongest foundation for a house?

5 Strongest Foundations for a House

• Isolated Column Footing.
• Basement Foundation.
• Slab Foundation.
• Wall Footing Foundation.
• Pile Foundation.

How do you heat a slab floor?

A layer of dense foam padding under the laminate can help warm up the floor somewhat. In slab situations, raising up the subfloor off the concrete with a layer of plywood over sleeper strips before installing the surface flooring can also make it warmer to the feet.

What is Alaskan slab?

One of the simplest and most effective designs is a fairly conventional concrete slab thickened to 18” or 20” at the outside edges and insulated on the outside face. Although based on designs used in Scandinavia for decades, this came to be known as the “Alaska Slab” foundation.

Do you need gravel under concrete?

Whether you pour concrete for a walkway or patio, a strong gravel base is required to prevent the concrete from cracking and shifting. Gravel is especially important in clay soil because it doesn't drain well, which results in water pooling under the concrete slab and slowly eroding the soil as it finally drains.

How deep are slab foundations?

A slab foundation is made of concrete that is typically 4"–6" thick in the center. The concrete slab is often placed on a layer of sand for drainage or to act as a cushion. Houses built on a slab lack crawlspaces, and there is no space under the floor.

Can you build a house on a floating slab?

Construction of Floating Slab

As mentioned they are more used in garages, an extension of the house or sheds that does not necessarily require huge foundations. These buildings are light in structure. So floating slabs are found most suitable and economical, compared with conventional slab construction.

What slab is poured as a single unit of concrete?

This whole process not only takes a lot of time, it also increases your construction costs! That's where monolithic slab foundations come in. Monolithic slabs combine the foundation footings and slab into one piece, allowing them to both be poured at the same time and cut back your time and monetary investment.

Which of the following is most likely to be necessary after excessive settlement or increased load on a foundation?

Which of the following is MOST likely to be necessary after excessive settlement or increased load on a foundation? shrink in size and increase in strength.
