How do I power a motherboard without a switch?

Here are the steps:

1. Ensure the 24-pin and 4/8-pin power headers are connected to the motherboard.
2. Ensure all other necessary power headers are connected to corresponding devices.

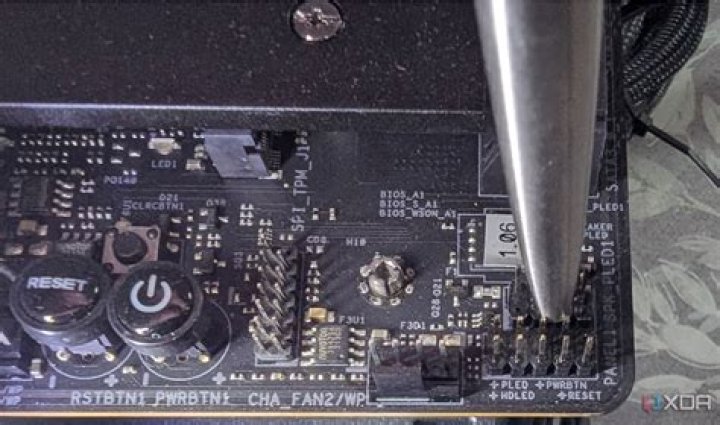

3. Locate the power switch header for the front panel connectors on the board.
4. Ensure the PSU is switched on and plugged in.
5. Find a screwdriver.

Besides, can you power up a motherboard without CPU?

That being said, your motherboard can indeed be powered without a CPU, allowing you to test certain features of the board itself. Similarly, all case fans should power up, so you'll be able to witness your motherboard's cooling system in action.

Additionally, can a dead CPU Kill a motherboard? In a multi-CPU system, the death of one CPU may not kill the whole motherboard. In laptop and tablet systems, the CPU is often soldered directly onto the motherboard and not fitted in a socket. If a CPU dies, then replacing the whole motherboard may be the cheapest solution.

Hereof, can a motherboard fry a power supply?

But the more frequent problem for motherboards is power surges. Most power supply units and motherboards can adjust their voltages to accommodate small power surges. But if it's a big one, it can fry your motherboard and all the components connected to it.

What are the signs of a dead CPU?

Common Failure Symptoms

• Computer turns on, no beeps, no screen.
• Computer turns on, fans run at highest speeds, still no POST, and operating system not loading.
• Computer powers on, but turns off immediately.
• In Windows (or any other OS), screen freezes after being on for a few minutes.

Related Question Answers

How do I know if I fried my motherboard?

Random Characters on the Screen. If you start up your computer only to observe your display fill with random characters and halt, the motherboard -- or at least the video chip -- is probably fried. If you have a dedicated video card, however, reseat or replace it first in order to rule out an issue with the card alone.

How do I know if my motherboard or CPU is bad?

Visual hardware check

Check the top of each capacitor to see if it's bulging or leaking, which is an indication the capacitor is blown. If you find any bulging or blown capacitors, that's very likely causing computer motherboard problems. For the CPU, a visual check requires you to remove the CPU from the computer.

How can I tell if my motherboard is running without a CPU?

Connect the right connector on the motherboard only to check power or possible damage. No way without processor chip and/or RAM. You could think pressing F2 or F12 some BIOS screen could appear, but not without them. Lack of RAM beeps but no screen.

Will a PC turn on without a CPU fan?

without all those fans, the CPU or the video card would quickly overheat. Most modern computers will either slow down to about 1/2 clock speed, or shut down entirely, if they get too hot in an effort to prevent damage.

Can I run PC without CMOS battery?

The CMOS battery is not there to provide power to the computer when it is in operation, it is there to maintain a small amount of power to the CMOS when the computer is powered off and unplugged. Without the CMOS battery, you would need to reset the clock every time you turned on the computer.

Will a PC turn on with a dead CPU?

Yes, you can turn on the MB without the CPU. The case fans will spin..etc. But it wont boot to BIOS for obvious reasons.

Is my motherboard dead?

The motherboard is the computer, so the usual symptom of a failed motherboard is a completely dead system. Fans, drives, and other peripherals may spin up if the motherboard is dead, but more often nothing at all happens when you turn on the power. No beeps, no lights, no fans, nothing.

How can I turn my computer on without power button?

How to Turn on a Computer Without a Power Switch

1. Shutdown the computer.
2. Enter the BIOS password if prompted to do so.
3. Move the cursor to the "Power Management" or "ACPI Management" option.
4. Press the "+" or "-" key to change the "Wake on Keyboard" or "Power on by Keyboard" option value setting to "Enabled."

Where is the power button on motherboard?

Originally Answered: how do you connect a computer power button to a motherboard? A2A as others have said, there will be something like a “Front Panel” header, one pair of pins on the header will be for the power switch. Consult the manual.

Can I use any power cable for PSU?

Any cable will work. A 1,000W power supply (80% efficient) will pull about 10 amps at full load. That's well within the specs of any of those cables. Some compaines do sell heavier duty cables, with larger wires in them, but there's no need in this case.

Where does HD Audio go?

It goes on the audio header of your motherboard so you can get front panel sound.

Where does SATA plug into?

Use the SATA power connector to plug into the larger SATA slot on your optical drive. The cable can only be inserted in one direction, so don't force it. If your power supply is older, it may only have Molex (4-pin) connectors. If this is the case, you will need to use a Molex-to-SATA adapter.

Are all PSU cables the same?

The device-side of all PC cables is standardized. Some vendors might use 6-pin connectors for their PSU-side peripheral headers (identical to what's found on PCI-e cables, because it saves cost), others will opt instead for a wide-format pin-out for the same.

How do I test a PC power supply?

To test your PSU:

1. Shut off your PSU.
2. Unplug all cables from the PSU except for the main AC cable and the 24-pin cable.
3. Locate pin 4 and pin 5 on your 24-pin cable.
4. Bend your paper clip so the ends can be inserted into pin 4 and pin 5.
5. Turn on the PSU.
6. See if the PSU fan turns.

How do I force my computer to start?

Pressing the F8 key at just the right time during startup can open a menu of advanced boot options. Restarting Windows 8 or 10 by holding the Shift key down while you click the “Restart” button also works. But sometimes, you need to restart your PC into Safe Mode several times in a row.

How do I test if my motherboard is working?

The simplest way to test your PSU is to plug it into a system that's functioning perfectly and power it on. If that doesn't work, then it was the PSU and not the motherboard. (Alternatively, if you have another functional PSU lying around, you can try that in your PC instead).

Why is my motherboard not getting power?

Improperly installed components

Components can cause a motherboard to malfunction if they're not properly installed. In some cases, your computer may not even get through POST (a self-testing mechanism employed by PCs during boot-up) or even turn on. Potential culprits include the processor, video card, and RAM.

Can you run a PC without a case?

Long-term open builds (PC's without a case) are possible to maintain and operate successfully, however risk of damage increases significantly without the security of a case. As others have correctly pointed out, you can build a PC without a case. Some tutorials will even recommend doing this.

How do you jumper a short motherboard?

If there is a CLR_CMOS (Clearing CMOS Jumper) jumper on the motherboard, you may place a jumper cap to temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few seconds.

Can you fix a fried motherboard?

Originally Answered: Can you repair a fried motherboard? Short answer is yes, in most cases, but the cost of the repair will be most likely be prohibitive and it will take specialized equipment and knowledge to desolder and resolder the failed modules, but if there are burned traces, then it is probably junk.

Can a bad power supply kill a motherboard?

Now, to directly answer your question, yes any power supply with a decent max output can fry a motherboard, but only if the motherboard, power supply, or both malfunction. Another way is if there is a power surge that causes any surge protection in your power supply to fail.

Can a GPU kill a motherboard?

And yes, a graphics card CAN take a motherboard out.. Rare but it can happen.

Is it OK to touch the back of a motherboard?

You're never supposed to touch it, you're only supposed to use your mind powers to connect components and install it in your case. You're going to have a buy a brand new board; most manufacturers won't cover you since it's not their fault that you touched your motherboard.

Can a PSU fry a CPU?

The CPU will fry if the voltage coming from the motherboard is not correct, if there is not proper ventilation for it (CPU fan), or even if there was no heat sink silicone compound. Just RMA'd the Mobo and CPU, looking to order a new PSU from newegg, a PSU tester to go with it, and a UPS in case of source power issues.

How do I know if my motherboard is shorted out?

If nothing gets displayed on your monitor and you did not hear a short beep, those could be signs suggestive of a motherboard failure. The short beep signifies the success of the computer's power on self test.

What can kill a motherboard?

The most common causes of motherboard failure are:

1. Aging of the battery.
2. Aging of capacitors.
3. Electrostatic discharge.
4. Heat.
5. Dirt.
6. Partially connected or incorrectly connected cables.
7. Improperly seated memory modules, video card, CPUs, and other expansion devices.
8. Carelessness.

Can bad RAM damage motherboard?

Yes, definitely it can damage your motherboard but the damaged ram doesn't work and your bios won't detect at all There's only 20% likely for your motherboard to get damaged How do you connect a computer power button to a motherboard?

What happens if PSU is overpowered?

There is no danger in buying an overpowered PSU for a PC because the PC will only draw the power that it needs. However, an underpowered PSU is dangerous because the PC can draw more power than the PSU can supply. At best your system will just freeze or maybe reset.
