How do I filter DHCP packets in Wireshark?

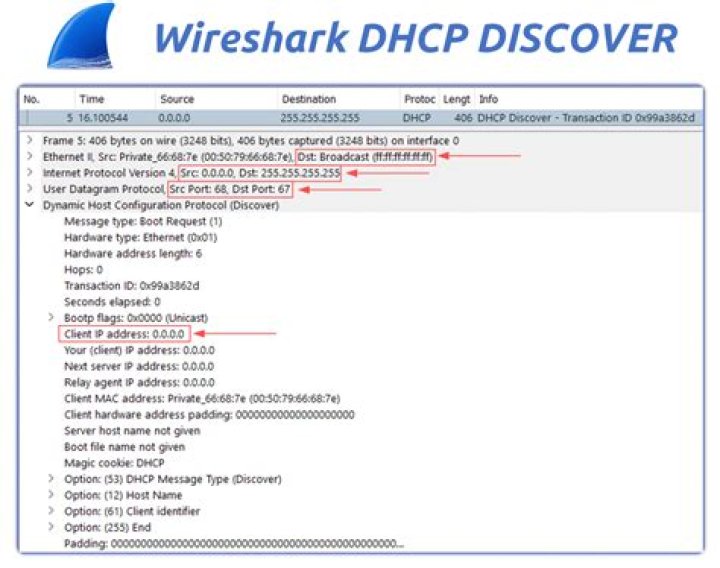

Observe the traffic captured in the top Wireshark packet list pane. To view only DHCP traffic, type udp. port == 68 (lower case) in the Filter box and press Enter. In the top Wireshark packet list pane, select the first DHCP packet, labeled DHCP Request.

Correspondingly, how do I filter packets in Wireshark?

To only display packets containing a particular protocol, type the protocol name in the display filter toolbar of the Wireshark window and press enter to apply the filter. Figure 6.7, “Filtering on the TCP protocol” shows an example of what happens when you type tcp in the display filter toolbar.

Beside above, how do I filter by MAC address in Wireshark? You can go to Statistics | Conversations. Click on the tab Ethernet to get an overview of all the MAC addresses in the capture file. Another option is to go to Statistics | Endpoints to open the "Enpoints"window. You can learn more about display filters in the Wireshark User's Guide or in the Wireshark Wiki.

Simply so, how do I find DHCP requests?

You can view a snapshot of the number of DHCP requests a server has processed by doing the following:

1. Open the DHCP snap-in.
2. In the left pane, right-click on DHCP and select Add Server.
3. Type in the name of the DHCP Server you want to target and click OK.
4. Right-click the server and select Action → Display Statistics.

What is DHCP packet format?

DHCP messages include a special option in the option field that differentiates them from BOOTP messages. DHCP a BOOTP uses UDP as the transport layer protocol, which provide no reliablity.

Related Question Answers

Why is Wireshark not capturing HTTP packets?

If you don't see http in the capture, what traffic do you see? You might actually be using HTTPS, in which case the traffic is encrypted and would not show as HTTP. You can setup Wireshark with the keys to decrypt the traffic, but it might require recompiling Wireshark for SSL decryption support.

Is Wireshark legal?

Wireshark is an open-source tool used for capturing network traffic and analyzing packets at an extremely granular level. Wireshark is legal to use, but it can become illegal if cybersecurity professionals attempt to monitor a network that they do not have explicit authorization to monitor.

Can Wireshark capture passwords?

Well, the answer is definitely yes! Wireshark can capture not only passwords, but any kind of information passing through the network – usernames, email addresses, personal information, pictures, videos, anything. As long as we are in position to capture network traffic, Wireshark can sniff the passwords going through.

Which Wireshark filter can you use to only show http traffic?

Some basic filters

• ! http shows all traffic which is NOT http.
• ip.src != 196.168.1.1 shows traffic which is NOT from this IP source.
• ip.dst == 196.168.1.1 shows traffic to this IP destination.
• ip.addr == 196.168.1.1 shows all traffic which has the specific IP as source OR destination.

What is the command used to filter the HTTP traffic?

The filter command for listing all outgoing HTTP traffic is sudo Wireshark. 3. Why does DNS use Follow UDP Stream while HTTP use Follow TCPStream?

How does Wireshark calculate DSCP value?

Wireshark: Display DSCP Value as a Column in a Capture

1. Right click on one of the columns (time, source destination etc.)
2. Click on column preferences.
3. Click Add at the bottom.
4. Click on the “New Column” Label and change it to “DSCP” then hit enter once.
5. With the new entry highlighted, change the Field Type to Custom (in the drop down box)

Can Wireshark capture https traffic?

Wireshark captures all traffic on a network interface. The thing with HTTPS is that it is application layer encryption. Wireshark is not able to decrypt the content of HTTPS. So bottomline: Wireshark cannot decrypt HTTPS traffic without the decryption key.

How do I see packets in Wireshark?

To analyze HTTP request traffic:

1. Observe the traffic captured in the top Wireshark packet list pane.
2. Select the fourth packet, which is the first HTTP packet and labeled GET /.
3. Observe the packet details in the middle Wireshark packet details pane.
4. Expand Hypertext Transfer Protocol to view HTTP details.

How do I diagnose DHCP problems?

How To Troubleshoot DHCP.

1. Check for IP Address Conflicts. DHCP clients connect to the network using a leased IP address.
2. Check Physical Connectivity.
3. Test connections with other Client using a Static IP Address.
4. Confirm Switch Port Configuration.
5. Verify the source of Clients IP Address.

How do I find out what my DHCP server is?

To display DHCP configuration information:

1. Open a command prompt.
2. Use ipconfig /all to display all IP configuration information.
3. Observe whether you have any network adapters that are DHCP Enabled. If so, identify your DHCP Server, when it shows Lease Obtained, and when it shows Lease Expires.

How do I find my DHCP log?

How do I enable DHCP server logging?

1. Start the DHCP administration tool (go to Start, Programs, Administrative Tools, and click DHCP).
2. Right-click the DHCP server, and select Properties from the context menu.
3. Select the General tab.
4. Select the "Enable DHCP audit logging" check box.
5. Click OK.

How does DHCP assign IP addresses?

DHCP Address Allocation Methods

1. Automatic allocation. —The DHCP server assigns a permanent IP address to a client from its. IP Pools.
2. Dynamic allocation. —The DHCP server assigns a reusable IP address from. IP Pools.
3. Static allocation. —The network administrator chooses the IP address to assign to the client and the DHCP server sends it to the client.

Why is DHCP not working?

Two things can cause a DHCP error. One is the configuration on the computer or device that allows a DHCP server to assign it an IP. The other is the configuration of the DHCP server. DHCP errors occur when the DHCP server or router on a network cannot automatically adjust the device's IP address to join the network.

What is DHCP log?

The DHCP log view at Status > System Logs on the DHCP Tab, displays messages and events from the DHCP Daemon and the DHCP client for WANs. Each DHCP request and reply from DHCP clients is shown here, along with events and errors. IP addresses, MAC addresses, and client-supplied hostnames are all visible in the logs.

How do I resolve DHCP problems?

The good news is, the problem in question is pretty solvable, so it is time for you to embark on a troubleshooting quest:

1. Employ Network Troubleshooter.
2. Configure your network adapter settings.
3. Turn on the DHCP client.
4. Check Windows Firewall.
5. Temporarily disable your main antivirus software.
6. Disable Proxy.
7. Fix your drivers.

How do I generate DHCP traffic?

To capture DHCP traffic:

1. Start a Wireshark capture.
2. Open a command prompt.
3. Type ipconfig /renew and press Enter.
4. Type ipconfig /release and press Enter.
5. Type ipconfig /renew and press Enter.
6. Close the command prompt.
7. Stop the Wireshark capture.

What port is DHCP on?

UDP

How do I filter Wireshark by IP?

To use a display filter:

1. Type ip. addr == 8.8.
2. Observe that the Packet List Pane is now filtered so that only traffic to (destination) or from (source) IP address 8.8. 8.8 is displayed.
3. Click Clear on the Filter toolbar to clear the display filter.
4. Close Wireshark to complete this activity.

How do I find my hostname in Wireshark?

Open the pcap in Wireshark and filter on nbns. This should reveal the NBNS traffic. Select the first frame, and you can quickly correlate the IP address with a MAC address and hostname as shown in Figure 5. The frame details section also shows the hostname assigned to an IP address as shown in Figure 6.

What is an example of MAC address?

Here's an example of a MAC address for an Ethernet NIC: 00:0a:95:9d:68:16. As you've probably noticed, the MAC address itself doesn't look anything like an IP address (see yours here). The MAC address is a string of usually six sets of two-digits or characters, separated by colons.

How do I find MAC address?

Windows 10, 8, 7, Vista:

1. Click Windows Start or press the Windows key.
2. In the search box, type cmd.
3. Press the Enter key. A command window displays.
4. Type ipconfig /all.
5. Press Enter. A physical address displays for each adapter. The physical address is your device's MAC address.

How do I use Wireshark?

Capturing Data Packets on Wireshark

Click the first button on the toolbar, titled “Start Capturing Packets.” You can select the menu item Capture -> Start. Or you could use the keystroke Control – E. During the capture, Wireshark will show you the packets that it captures in real-time.

What is a MAC ID number?

A MAC (Media Access Control) address is a unique ID assigned to every internet-connected machine that allows it to be identified when connected to a specific network.

How do I find my PCAP MAC address?

As hangsanb alluded to, you can use Wireshark's Statistics -> Endpoints , then choose the Ethernet tab for a list of unique MAC addresses, and choose the IPv4 (or IPv6 ) tab for the list of unique IP addresses.

How do I use Wireshark on Mac?

How to Install and Use WireShark on Mac OS X

1. Download WireShark. [
2. Mount the disk image.
3. On the disk image, open the Utilities folder.
4. Open the Startup folder you just copied, and delete "README.
5. Rename the Startup folder to "ChmodBPF" instead of "Startup".
6. Open the main "Library" folder on your hard drive -- NOT the one in your home directory.
7. Open Terminal.

Which bit of the Ethernet address is used to determine whether it is unicast or multicast broadcast?

The IEEE has specified that the most significant bit of the most significant byte be used for this purpose. If its a 1, that means multicast, 0 means unicast.

What are the 4 steps of DHCP?

DHCP operations fall into four phases: server discovery, IP lease offer, IP lease request, and IP lease acknowledgement. These stages are often abbreviated as DORA for discovery, offer, request, and acknowledgement. The DHCP operation begins with clients broadcasting a request.

What is IP DHCP snooping?

In computer networking, DHCP snooping is a series of techniques applied to improve the security of a DHCP infrastructure. When DHCP servers are allocating IP addresses to the clients on the LAN, DHCP snooping can be configured on LAN switches to prevent malicious or malformed DHCP traffic, or rogue DHCP servers.

Should DHCP be on or off?

DHCP means dynamic host configuration protocol; it hands out IP addresses for devices in your network. Unless you are going to configure each device manually, or you have a second DHCP server you should leave this option on.

What is DHCP Host Name?

DHCP stands for dynamic host configuration protocol and is a network protocol used on IP networks where a DHCP server automatically assigns an IP address and other information to each host on the network so they can communicate efficiently with other endpoints.

What is DHCP in router?

Dynamic Host Configuration Protocol (DHCP) is a network management protocol used to automate the process of configuring devices on IP networks, thus allowing them to use network services such as DNS, NTP, and any communication protocol based on UDP or TCP.

What is DHCP client?

A DHCP Server is a network server that automatically provides and assigns IP addresses, default gateways and other network parameters to client devices. It relies on the standard protocol known as Dynamic Host Configuration Protocol or DHCP to respond to broadcast queries by clients.

Is DHCP UDP or TCP?

DHCP uses UDP as its transport protocol. DHCP messages that a client sends to a server are sent to well-known port 67 (UDP—Bootstrap Protocol and DHCP).

Why is DHCP request broadcast?

The broadcast ensures that all the responding DHCP servers know that the client has chosen a server. The servers that are not chosen can cancel the reservations for the IP addresses that they had offered. The selected server allocates the IP address for the client and stores the information in the DHCP data store.

What is Dora process?

DHCP DORA process stands for the following message flows between the client and the server. Discover. Offer. Request. Acknowledge.
