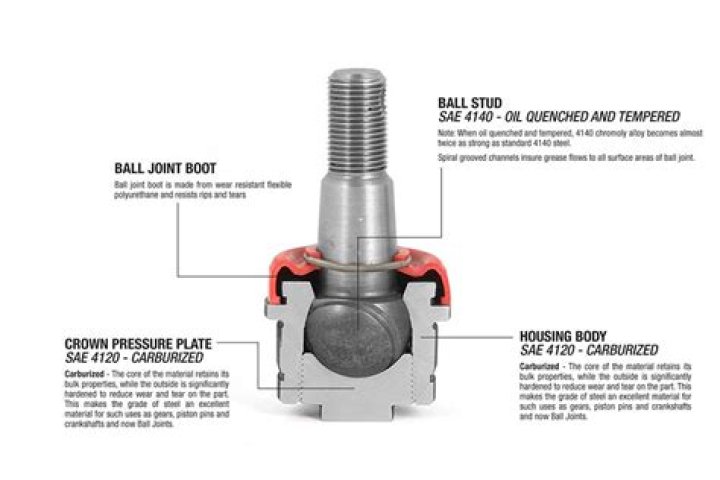

In an automobile, ball joints are spherical bearings that connect the control arms to the steering knuckles. A ball joint consists of a bearing stud and socket enclosed in a casing; all these parts are made of steel. The bearing stud is tapered and threaded, and fits into a tapered hole in the steering knuckle. Regarding this, how are ball joints manufactured?
The manufacturing process of a ball joint is called the caulking process. A caulking machine, as shown in Figure 4, is used to assemble the parts of a ball joint. The parts of the socket, bearing, plug, and ball stud are sequentially positioned in the caulking machine. The lower part of the socket is fixed to a jig.
Also, are ball joints hard to replace? From that standpoint, yes, it is hard to replace ball joints - more than basic DIYr skills and tools are required. There is also the safety dimension for being in close proximity to a suspended vehicle, and a compressed spring that has enough force to cause serious harm if it comes loose.
Also, how does ball joints work on a car?
Ball joints are a flexible ball-and-socket joint that connect a vehicle's control arms to the steering knuckles and act as a pivot point. Ball joints allow a vehicle's suspension to move up and down, while also allowing the wheels to steer left or right.
Can you drive a car with a bad ball joint?
By far the worst that can happen, when driving on a bad ball joint, is breakage. The ball joint can break in two ways: the ball detaching from the socket and stud breakage. No matter the form of breakage, the end result is catastrophic. When the ball joint completely breaks, the wheel is free to move in any direction.
Related Question Answers
How do I know if I have bad ball joints?
Symptoms of a Bad or Failing Ball Joint (Front) - Clunking noises coming from the front suspension. One of the most common symptoms of a problem with suspension ball joints is clunking noises coming from the vehicle's front suspension.
- Excessive vibration from the front of the vehicle.
- Steering wandering to the left or right.
How long do ball joints last?
between 70,000 to 150,000 miles
Should I replace upper and lower ball joints at the same time?
Ball joint replacement cost Some vehicles have only two lower ball joints and some have four, both upper and lower. You do not have to replace all the ball joints at one time, just the ones that are faulty. What causes ball joints to go bad?
Ball joints deteriorate if dirt, grit and impurities get inside or grease escapes, leading to a lack of lubrication. Added to this, rusting and general wear and tear also damage these suspension parts. The effects of this deterioration are excessive play and looseness (beyond the manufacturer's specifications). How often do ball joints need replaced?
between 70,000 to 150,000 miles
Are ball joints only in the front?
Kloster: Ball joints connect the control arm to the steering knuckle. The ball joint is a pivot between the wheels and the suspension of your vehicle. In the front suspension, on most vehicles, there are upper and lower ball joints on both sides. Depending on the type of suspension, some only use lower ball joints. What is the purpose of ball joints?
Ball joints consist of a ball and socket similar to the hip joint of the human body. Ball joints of your front suspension provide pivoting movement between the steering knuckles and control arms to provide a safe, smooth ride and allow you to precisely control your vehicle. Do you need an alignment after replacing ball joints?
No, you certainly don't need alignment after ball joints, unless your previous alignment was done when ball joints were bad and loose. If your car is driving sloppy after ball joints replacement, check other suspension parts. How long can you drive on squeaky ball joints?
short answer is it depends on how bad they are. the lower ball joint typically gets more wear than the upper. i'd say, if there's just a little wiggle in either joint, you should have no problem driving 500 miles. How many ball joints does my car have?
If your car has a short-long arm suspension, then it has a total of four ball joints. Two ball joints are found on each wheel – one as the upper ball joint and the other as the lower ball joint. On the other hand, if your car is strut-equipped, then it usually has two lower joints found in the front suspension. What does a bad ball joint sound like?
Metallic clunking noise: One of the most noticeable and common symptoms of a bad ball joint is a clunking or knocking noise when the suspension moves up and down. It can sound like a noisy door hinge, a rocking chair or a creaky spring mattress. Vibration: A loose or worn ball joint can cause excessive vibration. Should you be able to move ball joints by hand?
If you put a ring spanner that fits neatly over the thread you should be able to move it (put the ball joint in a vise to do this). It will feel fairly stiff to move but should move progressively without any hard spots from side to side in any direction as a ball joint should. How much does it cost to fix a ball joint?
Ball joint replacement cost There are many different vehicles on the road today and costs can range from $200 [for one] to just over $1,000 [for all four], including an alignment. Some vehicles have only two lower ball joints and some have four, both upper and lower. What happens when a ball joint breaks while driving?
A broken ball joint may be the cause of a mysterious clunking noise or drifting steering. And once they're worn, they will seriously affect your steering and suspension. If a ball joint fails completely, it can even result in the wheel dramatically falling off the car. Are ball joints and control arms the same thing?
A control arm connects the wheel hub and steering knuckle to the frame of the vehicle. They are typically equipped with bushings on the frame side of the vehicle and a ball joint on the wheel side of the vehicle that allow flex and controlled movement according to road conditions and steering input from the driver. Do you have to get a front end alignment after replacing ball joints?
No, you certainly don't need alignment after ball joints, unless your previous alignment was done when ball joints were bad and loose. If your car is driving sloppy after ball joints replacement, check other suspension parts. You stiffened up the ball joints, now the weak link is somewhere else. Can bad ball joints cause death wobble?
There is no reason to live with death wobble. Worn ball joints and unit bearings are also a significant cause of death wobble. Jack up the vehicle and grab the front and back (3 o'clock and 9 o'clock) of the tire and see if there is any play. What happens if you don t replace ball joints?
Ball joint failure isn't a common problem, but can be the result of years of driving along bumpy, uneven road surfaces. A broken ball joint may be the cause of a mysterious clunking noise or drifting steering. And once they're worn, they will seriously affect your steering and suspension. Can you replace ball joint without replacing control arm?
Both the lower and upper control arms have a ball joint, although the upper ball joint is often smaller. As the wheel drives over a bump, both arms swing up and down on rubber bushings following the wheel. The most common reason is when a ball joint wears out, and it cannot be replaced separately. Can you replace ball joints at home?
To replace ball joints, remove the wheel and soak all the bolts in WD-40 or another metal cleaner to make the bolts easier to remove. If your vehicle uses pressed-in ball joints, you'll need to remove the lower control arm and take the assembly to a mechanic with a hydraulic press to swap the joints out. Do ball joints need to be replaced in pairs?
Do ball joints have to be replaced in pairs? No, it's not necessary, however, often when one ball joint is bad the other could be worn out too. In pickup trucks with double-arm front suspension, the upper and lower ball joints on one side are often replaced at the same time if the labor overlaps. Are ball joints expensive?
Ball joint replacement cost There are many different vehicles on the road today and costs can range from $200 [for one] to just over $1,000 [for all four], including an alignment. Some vehicles have only two lower ball joints and some have four, both upper and lower. Can your tire fall off from a bad ball joint?
Bad ball joints can lead to abnormal wearing of your tires. As ball joints wear, this can hamper your ability to steer and control the vehicle. If a ball joint fails, a vehicle's suspension can collapse or the wheel could fall off causing the vehicle to lose control. Do bad ball joints squeak?
Squeaking noise: Because ball joints are constantly moving, they require grease for lubrication. If the rubber boot that holds and protects this grease gets compromised, a ball joint can begin to squeak or creak. The noise can be heard when you turn the steering wheel and when you go over bumps.
