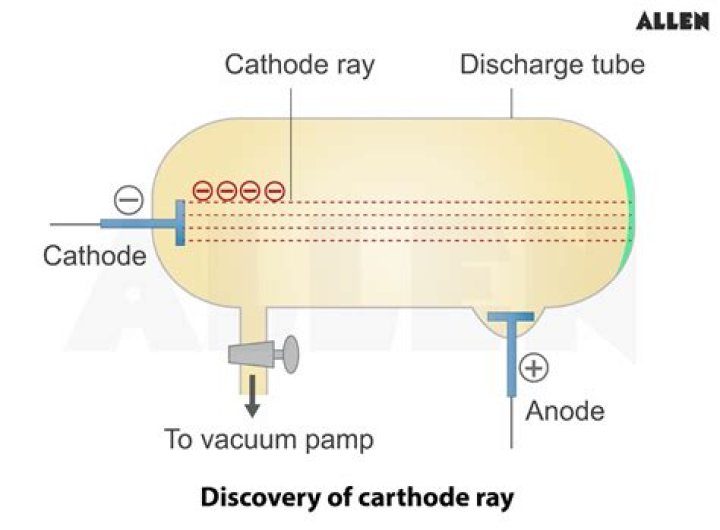

Cathode rays are so named because they are emitted by the negative electrode, or cathode, in a vacuum tube. They travel in straight lines through the empty tube. The voltage applied between the electrodes accelerates these low mass particles to high velocities. Beside this, why are cathode rays connected to a vacuum pump?
A high voltage generator is connected to the anode and cathode. When the Generator is switched on,Rays are formed from the cathode.So,the rays are called cathode rays. A vacuum pump is connected to the tube because when the air pressure is low we can easily create cathode rays.
Beside above, what happens when cathode rays are passed through a gas? Cathode rays come from the cathode, because the cathode is charged negatively. So those rays strike and ionize the gas sample inside the container. The electrons that were ejected from gas ionization travel to the anode. These rays are electrons that are actually produced from the gas ionization inside the tube.
Consequently, do cathode rays travel with speed of light?
NO, Cathode is negatively charged electron ray, so offcourse they are not even able totravel at speed of light.
How do we know that the cathode rays travel from cathode to anode?
electrons move from the cathode (negative electrode) to the anode (positive electrode). The tube contains a glass screen (set diagonally to the electron beam) that fluoresces, showing the path of the cathode rays.
Related Question Answers
Why are they called cathode rays?
Cathode rays are so named because they are emitted by the negative electrode, or cathode, in a vacuum tube. To release electrons into the tube, they must first be detached from the atoms of the cathode. What charge are cathode rays?
negatively charged
Do cathode rays have mass and charge?
These rays are called cathode rays. He showed that cathode rays were made up of particles and lighter than hydrogen. Initially he named them corpuscles and later electrons. Thus the cathode rays have both mass and charge. Who named cathode rays?
Productive study of the rays began in the 1850s, when Johann Geissler improved the vacuum pump and vacuum tubes and Julius Plücker made systematic observations using those tubes. Eugen Goldstein coined the term cathode rays in 1876. Why are cathode rays produced at low pressure?
At low pressure (10−2 atm) and higher voltage (10000 V) gases are partially ionised in the discharge tube. Positive ions of gases strike on the cathode. Due to the thermal effect, a beam of electrons releases from the surface of the cathode. This is called a cathode ray. What happened in the cathode ray experiment?
Key points. J.J. Thomson's experiments with cathode ray tubes showed that all atoms contain tiny negatively charged subatomic particles or electrons. Rutherford's gold foil experiment showed that the atom is mostly empty space with a tiny, dense, positively-charged nucleus. What are the properties of cathode and anode rays?
Cathode rays produce
fluorescence. 4. Cathode rays can ionize the gases through which they are passed.
- Anode rays travels in straight line.
- Anode rays consists of material particles.
- Under the influence of electric field anode rays are deflected towards the negative plate showing that they carry a net positive charge.
What are cathode rays and how do they differ from positive rays?
| Cathode rays | Anode rays |
| They travel from the cathode to the anode. | They travel from the anode to the cathode. |
| They are made of negatively charged particles. | They are made of positively charged particles. |
| They produces a greenish-yellow fluorescence on a soda-glass screen | They produce fluorescence on a zinc sulphide screen. |
What is the speed of cathode rays?
Cathode rays are streams of fast moving negatively charged particles. Their speed range is (Consider c=3×108ms−1) Who discovered the electron?
Thomson
What are the properties of cathode rays?
Some properties of cathode rays: - They travel linearly.
- They have a negative electric charge.
- They have particle property.
- Magnets can deflect them.
- Charge/mass ratio of the rays is constant.
- They travel from the cathode to the anode.
- Their properties are independent from the electrodes and gas present in the cathode ray tube.
What's a cathode ray?
Cathode ray, stream of electrons leaving the negative electrode (cathode) in a discharge tube containing a gas at low pressure, or electrons emitted by a heated filament in certain electron tubes. Why do cathode rays bend towards a positively charged plate?
The cathode rays accelerate vertically downwards under the influence of the constant downward force downwards on them due to the electric field produced by the charged plates. The cathode rays move at constant speed horizontally but faster and faster towards the positively charged plate. Why do electrons move from the negative end to the positive end?
Answer: Electrons are negatively charged, and so are attracted to the positive end of a battery and repelled by the negative end. So when the battery is hooked up to something that lets the electrons flow through it, they flow from negative to positive. What is the source of anode rays?
An anode ray (also positive ray or canal ray) is a beam of positive ions that is created by certain types of gas-discharge tubes. They were first observed in Crookes tubes during experiments by the German scientist Eugen Goldstein, in 1886. What is discharge tube explain with diagram?
A tube used to study the electrical conduction through gases at low pressure known as discharge tube. It consists of a strong glass tube about 0.5 m long and 0.04 m diameters, closed at both ends and provided with two platinum electrodes A and C, called anode and cathode respectively. What is discharge tube experiment?
In discharge tube experiment, at low pressure and at very high voltage, an electric current is passed. Due to passage of electric current, a stream of rays is passed in the tube originating from cathode. These rays are called "CATHODE RAYS". What was Goldstein experiment?
What was Goldstein experiment? In the 1870s, Goldstein conducted his own discharge tube experiments and named Kathodenstrahlen, or cathode rays, the light emissions examined by others. He found some major cathode ray properties, which led to their subsequent discovery as the electron, the first subatomic particle. What is a an electron?
An electron is a negatively charged subatomic particle. It can be either free (not attached to any atom), or bound to the nucleus of an atom. Electrons in atoms exist in spherical shells of various radii, representing energy levels. The charge on a single electron is considered as the unit electrical charge. Why cathode rays do not depend on nature of gas?
the properties of cathode rays do not depend upon the nature of gas because cathode rays consists of electrons and all types of gases consist same type of electrons. What is the major difference between positively charged cathode rays and negatively charged cathode rays?
One electrode, called the anode, becomes positively charged while the other electrode, called the cathode, becomes negatively charged. A glowing beam (the cathode ray) travels from the cathode to the anode. Are cathode rays deflected by electric field?
Thomson had shown that cathode rays behave as one would expect negatively charged material particles to behave. They deposited negative charge on an electrometer, and were deflected by both electric and magnetic fields in the appropriate direction for a negative charge. What were electrons originally called?
Stoney initially coined the term electrolion in 1881. Ten years later, he switched to electron to describe these elementary charges, writing in 1894: " an estimate was made of the actual amount of this most remarkable fundamental unit of electricity, for which I have since ventured to suggest the name electron". Why cathode rays are deflected at right angle?
A high voltage is transmitted to the cathode ray tube, inducing the cathode to emit electrons – essentially an electrical current. That rule describes how a charged particle (our electron) moving in a magnetic field will be deflected by that field at a right angle to both the field and to the direction of the particle. What's inside a cathode ray tube?
The cathode-ray tube (CRT) is a vacuum tube containing one or more electron guns, the beams of which are manipulated to display images on a phosphorescent screen. The images may represent electrical waveforms (oscilloscope), pictures (television set, computer monitor), radar targets, or other phenomena. How do electrons emit from the cathode?
A cathode electrode in a vacuum tube or other vacuum system is a metal surface which emits electrons into the evacuated space of the tube. The cathode is heated to a temperature that causes electrons to be 'boiled off' of its surface into the evacuated space in the tube, a process called thermionic emission.
