Engineers spent a lot of time and testing to determine the proper switch for the furnace. It is fine to use after market parts but they must have the same rating and design characteristics. Accordingly, are all furnace pressure switches the same?
Different furnaces may have different types of pressure switches in them. Based on the size of the unit (meaning heat output capability, not the physical dimensions), the amount of suction the pressure switch requires to work will vary.
One may also ask, what causes a pressure switch to be stuck open? The most likely reason that your pressure switch is stuck open is due to: Obstructed venting (chimney/flue pipe) Disconnected or clogged pressure switch hose. Malfunctioning pressure switch.
Also asked, can I bypass my furnace pressure switch?
If the temperature is below the setpoint, the resistance across the switch should be zero. If you do not have an electrical meter, you can temporarily bypass the switch and see if the furnace works.
What are two types of pressure switches?
There are two main types of pressure switches:
- Mechanical (electromechanical)
- Electronic (solid state)
Related Question Answers
How long do pressure switches last?
The pressure switch can last for several years, but sometimes it can fail much sooner than you expect. To avoid being left without a functioning well, some homeowners simply have the switch replaced every year. Your well pump contractor can make this replacement when they come out for their yearly maintenance visit. How much does it cost to replace a pressure switch on a furnace?
The pressure switch also protects your home from gas leaks, and it shuts down the furnace in the event of a mechanical failure. Without the pressure switch, your home could be at risk for carbon monoxide problems. A pressure switch with labor generally costs between $50 and $150. Why does my furnace have two pressure switches?
Two Stage: If you have a two stage furnace, it is likely that you will have two pressure switches. This is because your furnace has two heat exchangers, requiring each exchanger to have its own switch. Draft pressure switches tend to operate at 24 volts. What does wc stand for on a pressure switch?
Inches of water is a non-SI unit for pressure. It is also given as inches of water gauge (iwg or in. w.g.), inches water column (inch wc or just wc), inAq, Aq, or inH2O. What happens if pressure switch goes bad?
It's what senses when water pressure has dropped to the point where the pressure tank requires more water. The switch then powers up the well pump. If the switch is bad, it won't start the well pump and you won't have water, so testing the switch is your first step. How can you tell if a pressure switch is bad?
Disconnect the wires connected to the pressure switch by pulling the wire connectors off of the switch terminals. Set a multimeter to test for resistance (ohms). Touch each tester probe to one of the switch terminals. The tester should read 0 or close to 0 (indicating no resistance). Why do furnace pressure switches go bad?
If the pressure switch is damaged, this could be the reason your furnace is malfunctioning. Check for a clogged hose port or cracked hose running from the draft inducer motor or condensate collector box to the pressure switch. These problems can cause the switch to trip or fail. Should a pressure switch be open or closed?
The pressure switch is a normally open switch that closes upon the manufacturer's specifications for required negative pressure. If the inducer turns on and is working normally, the furnace pressure switch should activate. There's no time lag on this either. The inducer motor creates this draft quickly. Can you bypass a flame rollout switch?
You should never bypass your flame rollout switch because it can alert you to problems with your furnace. Anytime that heat exceeds 350 degrees Fahrenheit, your flame rollout switch will trip. You can reset your furnace using the reset button on the flame rollout switch above the furnace. How do you bypass a flame sensor?
Unfortunately, you cannot bypass the flame sensor and light your furnace manually, as the gas valve will not open until the flame igniter sends a signal to the control board. Attempting to manual light your furnace is very dangerous and should never be attempted. How does a low pressure switch work?
A low-pressure switch is connected to the suction, or “low” side of the system to sense suction pressure. When the pressure in the system exceeds the high pressure switch setting, the switch will open circuit the compressor clutch and the compressor will stop circulating refrigerant. What is the switch on the furnace for?

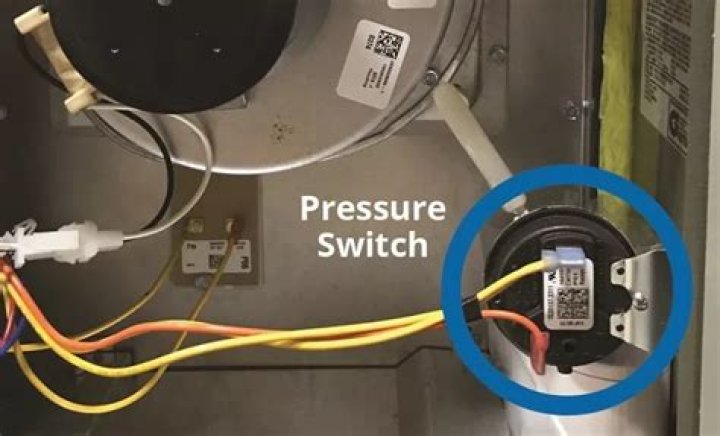

A furnace pressure switch is a safety device located near the draft inducer motor of a gas forced-air furnace. The switch is there to prevent the furnace from running unless the correct venting air pressure is present. How do pressure switches work?
Pressure switches rely on water pressure to do all the work. Open contacts located within the switch, closes when pressure drops. This completes an electrical circuit, which in turn activates the pump. When the set pressure is reached, this allows the contacts to open again which turns off the pump. What is pressure switch in furnace?
A furnace pressure switch is an automatic safety feature located near the motor. It shuts the furnace down if it senses negative pressure created by the draft inducer motor.
